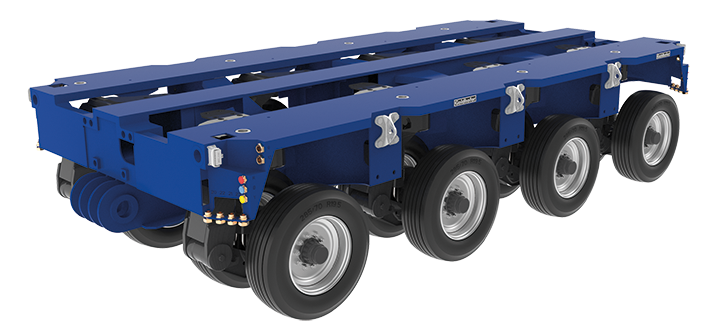

THP/ET

OPTIMAL FOR LONGER ROUTES

Our THP/ET heavy-duty modules are the ideal solution for challenging routes. The THP/ET effortlessly copes with long transport routes with the narrowest passages, which place the greatest strain on the vehicle - and with an alternative basic width, it is also ideally equipped for the most extreme cases.

SEND REQUEST NOW!

Your benefits
  • Standard feature with 285/70 R 19.5 tires
  • High cross-country mobility
  • 19.5 inch components
  • High performance and low-wear brakes
  • Alternative basic width of 2,500 mm
  • For fulfilling guidelines regarding vehicle width

Technical features

+   Single tires   285/70 R 19.5
+   Axle load   15.6 t at 20 km/h
+   Dead weight (4-axles)   11.5 t
+   Axle stroke   600 mm
+   Vehicle width   2,500 mm / 2,750 mm
+   Axle spacing   1,400 mm
+   Max. steering angle   ± 60°
+   Number of axles   2-6

Accessories and options

General accessories

+



Hydraulic power pack
Hatz 10 kW / 13.6 PS
Kohler 17.9 kW / 24.3 PS


+   Operation panel
+   Cable remote control

+

  Radio remote control

Towing equipment
+   Swivel arm for single widths
+   Center towing device for parallel combination (1+1/2)
+   Center towing device for parallel combination (1+1)
+   Drawbar 2 m, 3 m and 5 m

Gooseneck

+

  Combination gooseneck 35 t

+

  Universal gooseneck 35 t, 45 t and 52 t

Turntable
+   100 t / 200 t [1]
+   300 t / 400 t [1]

Flatbed deck
+   Construction height 250 mm / 300 mm
+   Length 7,000-12,000 mm [2]
+   With / without coupling point, overrideable / non-overrideable

Vessel deck
+   Construction height 450 mm, 500 mm or 650 mm

+

  Length 7,000-13,000 mm [2]
+   Width 3,000-6,000 mm
+   Fixed or extendable

Excavator deck
+   Construction height 350 mm, 450 mm or 500 mm
+   Length 7,000-13,000 mm [2]
+   Fixed or extendable

Intermediate deck
+   Length 3,000 mm-9,000 mm

Tower adapter
+   RA 2
+   RA 3
+   RA 4

[1] Capacity per turntable
[2] Special lengths from 3,000-15,000 mm on request

Downloads

Maximum operating
performance
(kilometers)
Small axle
spacings
Different vehicle
widths

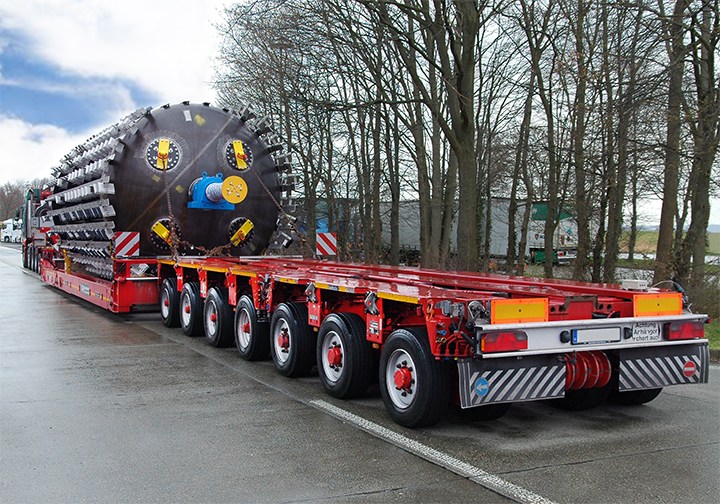

THP/ET in action
