»SHERPA« FAMILYFOR SUSTAINED USE

The »SHERPA« family offers the ultimate efficiency. The product line was developed with modular design in mind: Standardized parts with sophisticated options for customized vehicle designs. Long maintenance intervals save money and ensur e operational readiness.

MODULAR PLATFORM
MODULAR PLATFORM
Find out more
MAXIMUM PERFORMANCE
MAXIMUM PERFORMANCE
Find out more
INDIVIDUAL VALUE
INDIVIDUAL VALUE
Find out more

»SHERPA« DMODULAR PLATFORM

Customize your »SHERPA« tractors to fit your individual needs!

»SHERPA« D provides powerful and reliable support for a wide range of tasks on the Airport apron.

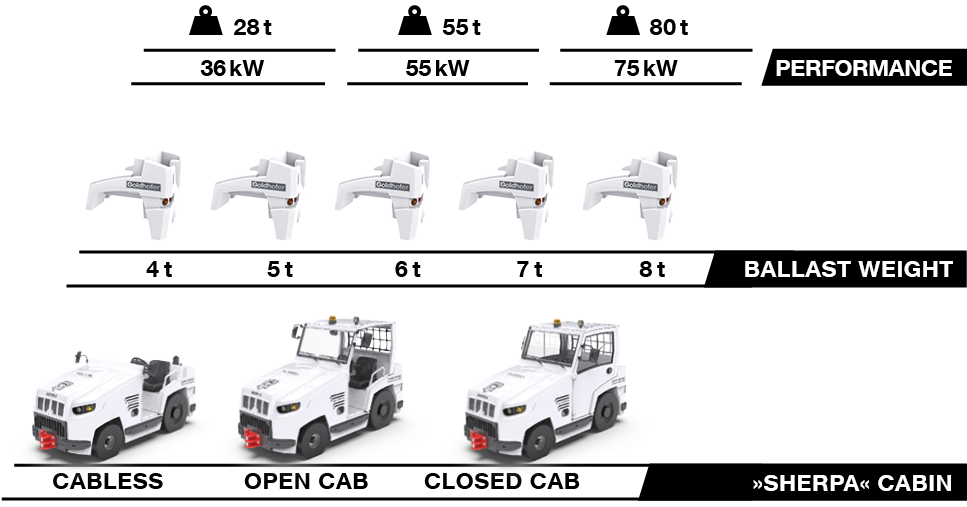

  • Compact design and cabin variants: cabless, open cab and closed cab

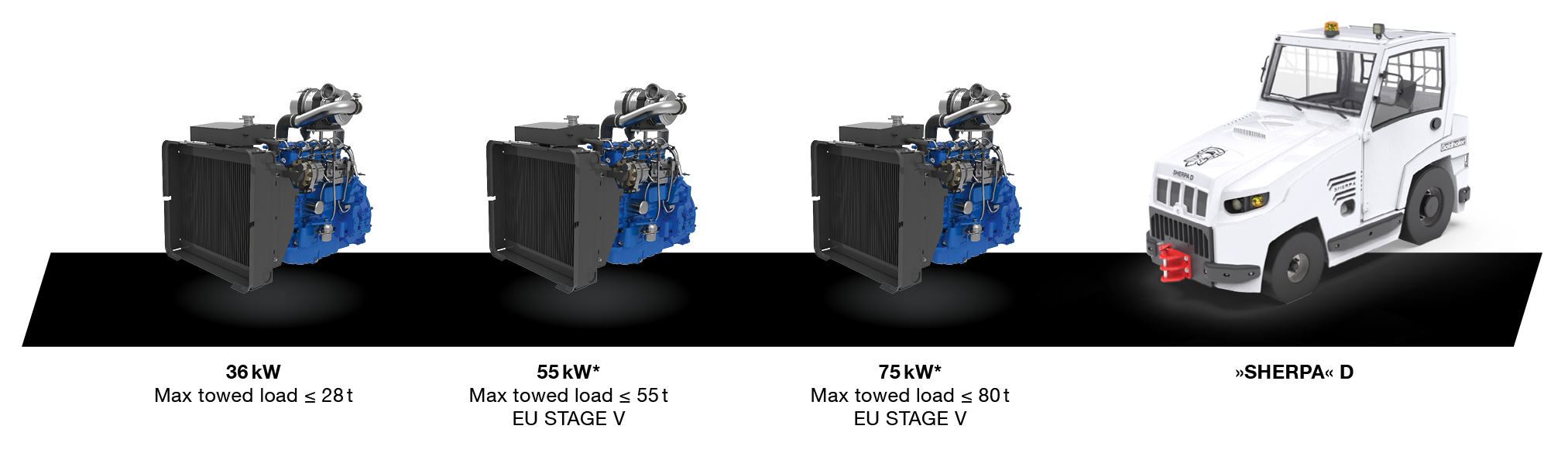

  • Diesel engine with three different power classes
  • Same vehicle – different weights: Optimal traction and pulling force thanks to ballast weights of 4-8 t, with maximum maneuverability

Multi-PurposePushback for business jet

For small airports specializing in handling private jets, flexible equipment is crucial – it must be safe and reliable in all functions.

That is why we developed the »SHERPA« to not only be used as a cargo tractor, but also to be capable of moving aircraft up to 50 t MTOW.

COUNT ON »SHERPA« DMAXIMUM PERFORMANCE

PERFORMANCE & ERGONOMICS

  • All »SHERPA« models offer uniform operation
  • Extremely quiet operation
  • Even on a 3% incline, loads of up to 50 t can be handled with ease
  • The different drive trains allow speeds of up to 30 km/h

SAFETY

  • The tried-and-tested front axle with optimized suspension enables excellent maneuverability
  • A dual circuit braking system and a separate parking brake ensure maximum safety
  • Sophisticated cockpit with simple operation and ergonomic seat position

RELIABLILITY

  • Robust, long-lasting components made by quality manufacturers
  • Minimal maintenance for long-term operational availability

THE »SHERPA« DINDIVIDUAL VALUE

DIAGNOSTICS AND MAINTENANCE

  • Information and error messages as plain text in the multifunction display
  • Parking brake as spring-loaded disc brake on the axle mount
  • Maintenance hatch in the cabin foot well for easy access to filter, transmission, oil gauge, and filler neck
  • Disc brakes on front and rear axle do not require adjustment or readjustment
  • Optimized hydraulic system with reliable gear pumps for long-term use
  • Lubrication-free drive shaft

CONCEPT FOR SUCCESS

  • In use on every continent and in all environmental conditions, from -20 °C to +50 °C
  • Three cabin designs: Cabless, open cab, closed cab
  • Small turning radius of 3.95 m

VEHICLE-SPECIFIC ADVANTAGES

  • Various engine power classes
  • Leaf spring suspension developed specially for the »SHERPA« with high suspension comfort
  • 360° view from the cabin

Downloads

UP TO 1,000 h
MAINTANENCE
INTERVAL
CABIN OPTIONS
FOR FLEXIBLE
CONFIGURATION
Maintenance
free
components

»SHERPA« D IN ACTION
