»SHERPA« E FAMILYFOR SUSTAINED USE

The »SHERPA« family offers the ultimate efficiency. The product line was developed with modular design in mind: Standardized parts with sophisticated options for customized vehicle designs. Long maintenance intervals save money and ensur e operational readiness.

MODULAR PLATFORM
MODULAR PLATFORM
Find out more
MAXIMUM PERFORMANCE
MAXIMUM PERFORMANCE
Find out more
INDIVIDUAL VALUE
INDIVIDUAL VALUE
Find out more

»SHERPA« EMODULAR PLATFORM

»SHERPA« E provides powerful and reliable support for a wide range of tasks on the Airport apron.

While the »SHERPA« E offers the same comfort, safety, and performance benefits as diesel vehicles, it can be operated as an environmentally friendly alternative, and even indoors.

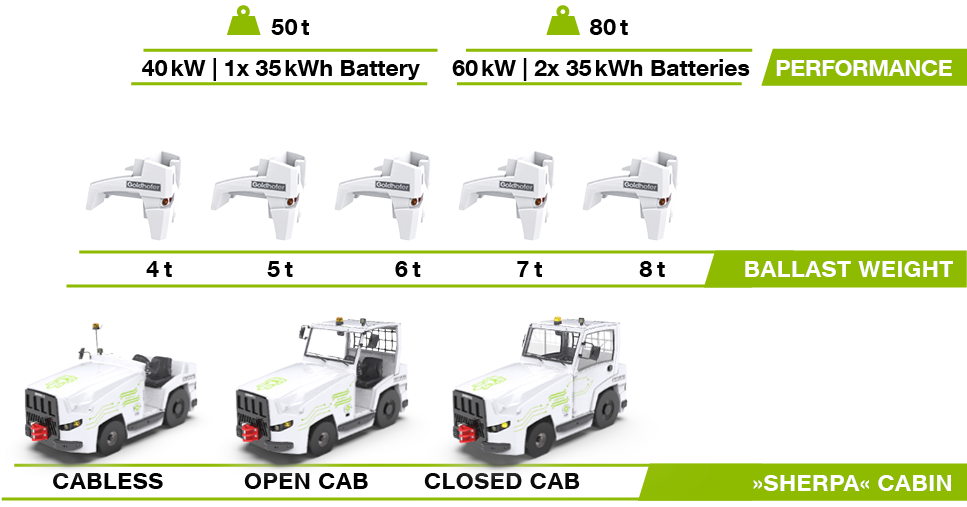

  • Compact design and cabin variants: cabless, open cab and closed cab
  • Geared to your needs: E-power train and modular battery system

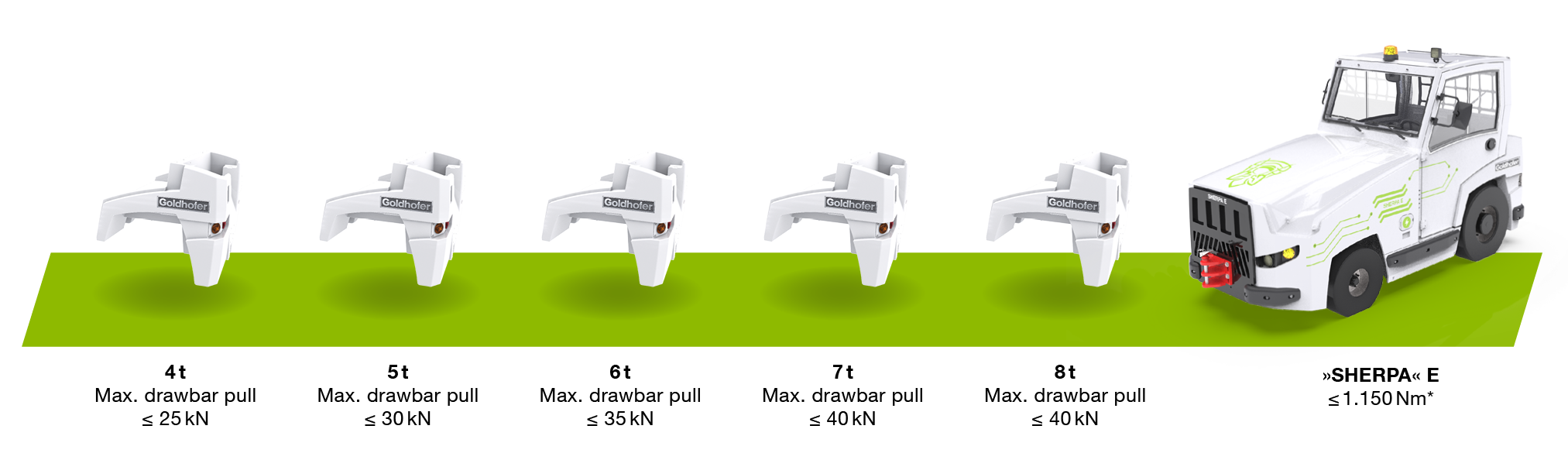

  • Same vehicle – different weights: Optimal traction and pulling force thanks to ballast weights of 4-8 t, with maximum maneuverability

Multi-PurposePushback for business jet

For small airports specializing in handling private jets, flexible equipment is crucial – it must be safe and reliable in all functions.

That is why we developed the »SHERPA« to not only be used as a cargo tractor, but also to be capable of moving aircraft up to 50 t MTOW.

COUNT ON »SHERPA« EMAXIMUM PERFORMANCE

PERFORMANCE & ERGONOMICS

  • All »SHERPA« models offer uniform operation
  • Extremely quiet operation
  • Even on a 3% incline, loads of up to 50 t can be handled with ease
  • The different drive trains allow speeds of up to 30 km/h

SAFETY

  • The tried-and-tested front axle with optimized suspension enables excellent maneuverability
  • A dual circuit braking system and a separate parking brake ensure maximum safety
  • Sophisticated cockpit with simple operation and ergonomic seat position

RELIABLILITY

  • Robust, long-lasting components made by quality manufacturers
  • Minimal maintenance for long-term operational availability

THE »SHERPA« EINDIVIDUAL VALUE

»IONMASTER« TECHNOLOGY

  • Active thermal management for cabins and all high-voltage components: Heating and cooling for optimal temperature conditions, even during charging, for long battery life
  • Modularly expandable battery system, configurable for individual deployment requirements
  • Commercial vehicle industry tried-and-tested 400 V lithium-ion batteries for certified, maximum safety, ultimate performance, and service life
  • Electric power train, electric engine, battery, thermo module, and inverter are maintenance-free
  • Second-life applications for battery systems possible, e.g. as stationary storage systems

CHARGING AND INFRASTRUCTURE

  • All standard charging plugs available: CCS Typ 1, CCS Typ 2, CHAdeMO and GB/T
  • Infrastructure consulting on charging points
  • Rapid DC charging and intermediate charging at up to 70 kW
  • Optional AC charging at up to 22 kW

VEHICLE-SPECIFIC ADVANTAGES

  • All Standard Plugs available: CCS Type 1, CCS Type 2 and GB/T
  • Three cabin designs: cabless, open cab, closed cab
  • Functions under all temprature conditions for any climate conditions from -25 °C to +50 °C
  • Offers a 360° view for the operators

Downloads

ADJUSTABLE
BATTERY
CAPACITY
CABIN OPTIONS
FOR FLEXIBLE
CONFIGURATION
GOLDHOFER
»IONMASTER«
TECHNOLOGY

»SHERPA« E IN ACTION
