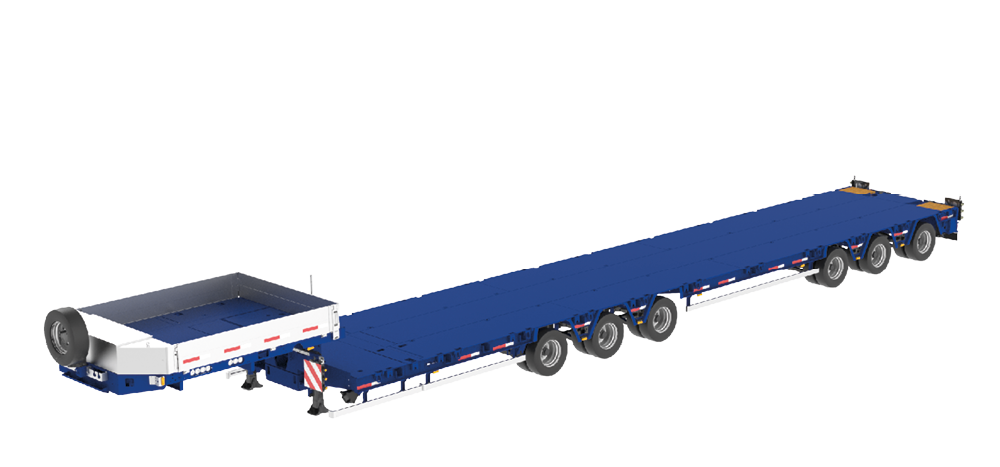

»MPA« 6

GIANT FOR AMERICAN HIGHWAYS

Our highway semi lowloaders are tailor-made to the needs of North American transport industry. The »MPA« 6 is equipped with tridem axle groups. The low driving height makes the shortest permittable route for your wide range of cargos possible.

SEND REQUEST NOW!

Your benefits
  • Extreme low loading height
  • Transportation of higher loads
  • Single telescopic
  • Greater flexibility regarding loads
  • Tested and proven Goldhofer axle technology with components from premium manufacturers
  • Low maintenance and long service life

Technical features

+   Axle load
(depending on countryrelated regulations)

12 t
+   Loading height   885 mm (+250 mm/-100 mm)
+   Axle compensation   350 mm
+   Tires   245/70 R 17.5
+   Vehicle width   2,750 mm
+   Max. steering angle   ± 60°
+   Fifth wheel load   26 t
+   Swing clearance radius   2,800 mm
+   Gooseneck   Hydraulic, Center beam
+   Axle spacing   1,525 mm
+   Spacing between tridems   4,900 mm
+   Extendability   Rigid or single telescopic


Accessories and options

General accessories

+



Knorr “TIM” / Wabco “Smartboard”


+   “easyCONTROL” remote steering
+   Storage boxes under the loading platform
+   Working lights
+   Lift axle

Gooseneck

+



Spare wheel carrier



+



High front wall



+

  Sidewalls
+   Premium tool box
+   Loading ramp + Premium tool box
+   Cable winch
+   Stowage aids for accessories
+   Diesel power pack

Loading platform

+

  Long material trestle, stanchion pocket strip
+   Outriggers

+



Threaded bushings


+   Load-securing trestle
+   Sliding table
+   Insertable wheel recesses

Rear
+   Various rear designs
+   Hydraulic ramp sideshift
+   Climbing pads
+   Mechanical/hydraulic landing legs
+   Detachable ramps
+   Ramps in a variety of widths, lengths and coverings

Downloads

3-axle bogies
compliant to
North american
regulations
Comprehensive
accessories
extrem low
loading height

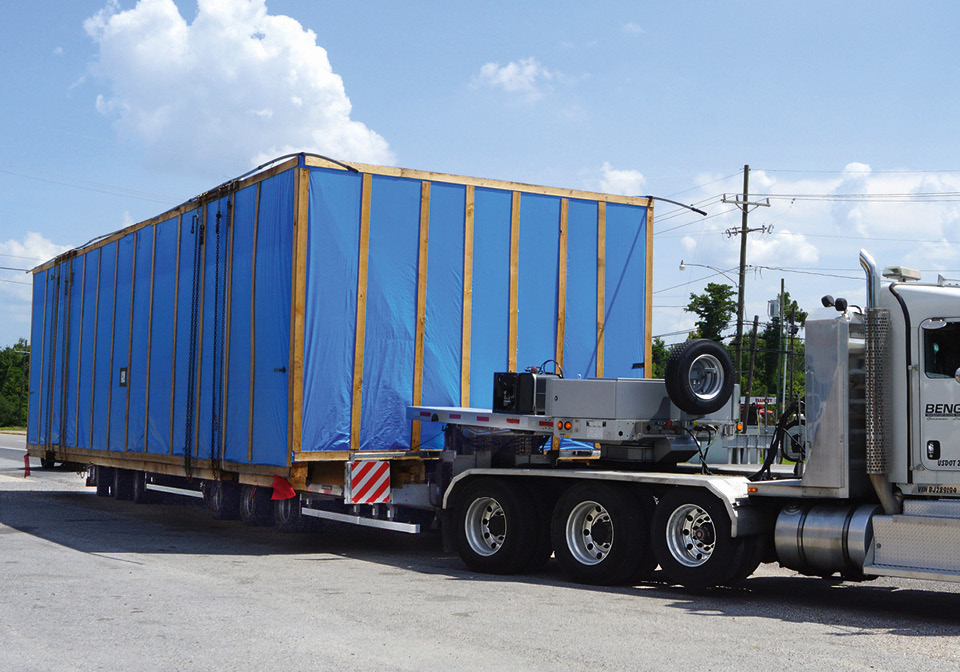

»MPA« 6 in action
