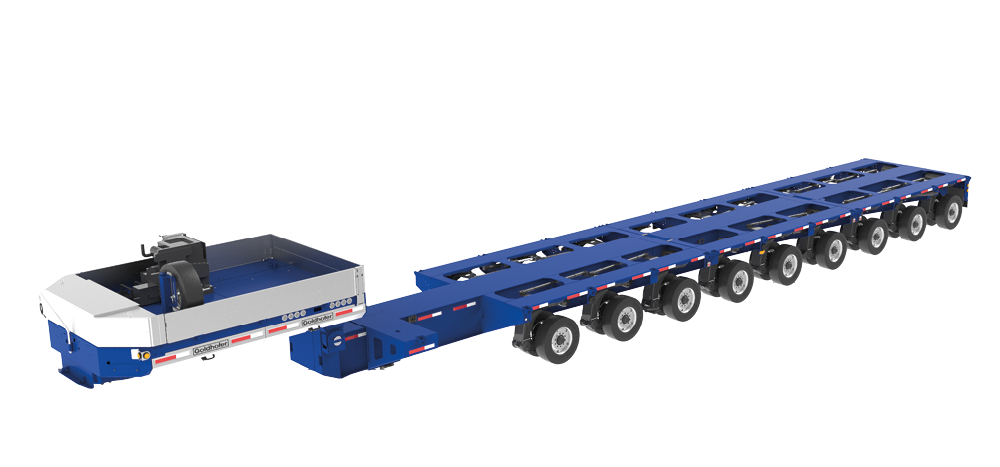

STZ-P 9

GIANT FOR AMERICAN HIGHWAYS

Our highway semi lowloaders are tailor-made to the needs of North American transport industry. The STZ-P 9 is equipped with tridem axle groups. The axle spacing between the tridems can be also adjusted to fulfill the various North American regulations. The low driving height makes the shortest permittable route for your wide range of cargos possible.

SEND REQUEST NOW!

Your benefits
  • No assembly/dismantling on site
  • Quickly ready in operation
  • Compliance with the legal requirements for road haulage
  • Universal utilization-capable vehicle
  • Tested and proven Goldhofer axle technology with components from premium manufacturers
  • Low maintenance and long service life

Technical features

+   Axle load
(depending on countryrelated regulations)

12 t
+   Loading height   1,080 mm (+400 mm/-200 mm)
+   Axle compensation   600 mm
+   Tires   245/70 R 17.5
+   Vehicle width   2,990 mm
+   Max. steering angle   ± 60°
+   Fifth wheel load   30 t
+   Swing clearance radius   2,800 mm
+   Gooseneck   Hydraulic, Center beam
+   Axle spacing   1,525 mm
+   Spacing between tridems   7,250-7,045 mm
+   Extendability   2 x 5,520 mm


Accessories and options

General accessories

+



Knorr “TIM” / Wabco “Smartboard”


+   “easyCONTROL” remote steering
+   Storage boxes under the loading platform
+   Working lights
+   Lift axle

Gooseneck

+



Spare wheel carrier



+



High front wall



+

  Sidewalls
+   Premium tool box
+   Loading ramp + Premium tool box
+   Cable winch
+   Stowage aids for accessories
+   Diesel power pack

Loading platform

+

  Long material trestle, stanchion pocket strip
+   Outriggers

+



Threaded bushings


+   Load-securing trestle
+   Sliding table
+   Insertable wheel recesses

Rear
+   Various rear designs
+   Hydraulic ramp sideshift
+   Climbing pads
+   Mechanical/hydraulic landing legs
+   Detachable ramps
+   Ramps in a variety of widths, lengths and coverings

Downloads

3-axle bogies
compliant to
North american
regulations
Comprehensive
accessories
retractable
rear bogie
under load

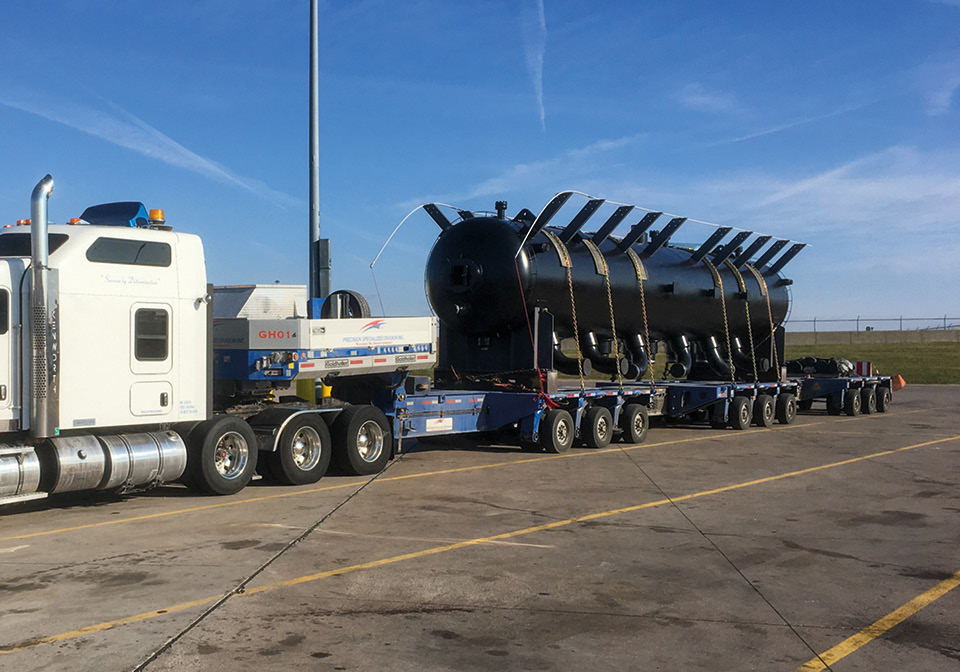

STZ-P 9 in action
