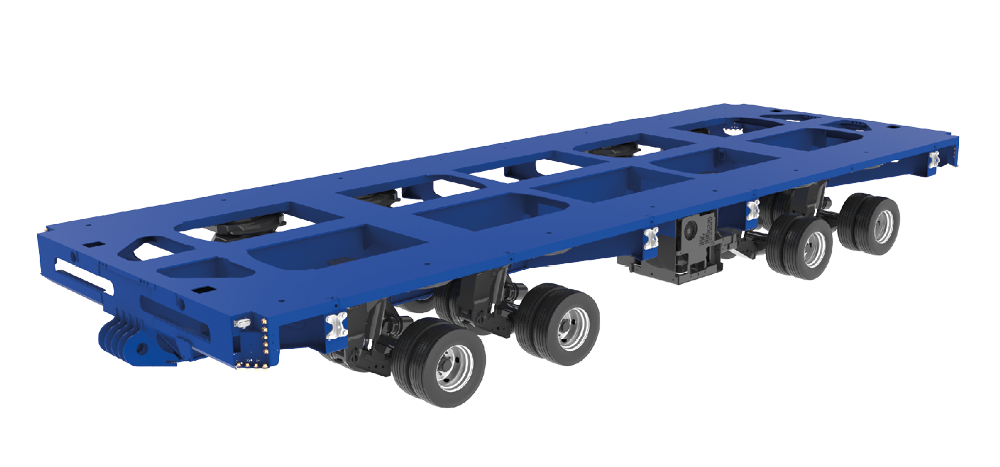

THP/DR

THE SOLUTION FOR EXTREME CHALLENGES

The THP/DR with double-rotating wheelsets makes it possible to adjust trailer width under full load so as to comply with the different regulations for heavy haulage on public roads in North America. This flexibility in terms of vehicle width and axle spacing means the return journey can be made without police escort. That reduces mobilization costs and improves the economics of the operation.

SEND REQUEST NOW!

Your benefits
  • Change of width under load without crane or forklift
  • Usage of common accessories such as gooseneck, drop deck etc.
  • Cost savings for long-distance hauling to job sites

Technical features

+   Twin tires   245/70 R 17.5
+   Axle load   24 t at 40 km/h
+   Loading deck width   4,270 mm
+   Vehicle width   4,270-6,100 mm
+   Axle spacing   1,600 mm
+   Axle spacing between Tandem groups   4,300 mm
+   Max. steering angle   ± 60°


Accessories and options

General accessories

+

  THP/DC Diesel hydraulic power pack
+   “easyCONTROL” remote steering
+   Working lights
+   ALCOA aluminum rims with Durabright finish
+   Threaded bushings

Towing equipment and goosenecks

+

  Swivel arm THP/DC

+

  Swivel arm THP/DR

+

  Drawbar 2,000 m, 3,000 m, 5,000 m, 7,000 m and 9,000 m
+   Universal gooseneck 26 t, 35 t, 45 t and 52 t
+   Gooseneck THP/DC | THP/DR
+   Gooseneck THP/CA

Loading equipment

+

  Drop decks
+   Vessel bridges

+

  Excavator decks
+   Intermediate spacers
+   Spacer

Turntable
+   100 t  /  200 t

Tower adapter
+   RA 2
+   RA 3
+   RA 4

Higher girder bridge
+   »FAKTOR« 5
+   »FAKTOR« 5.5

Downloads

Windening
under load
Double-Rotating
Wheelsets
Operating width
1,800-6,000 mm

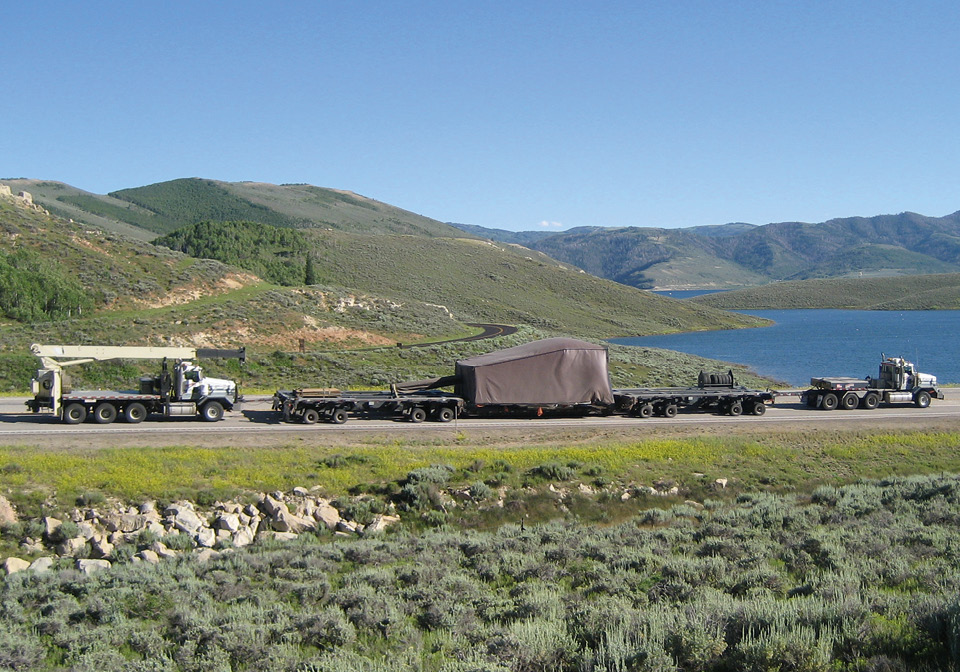

THP/DR in action
