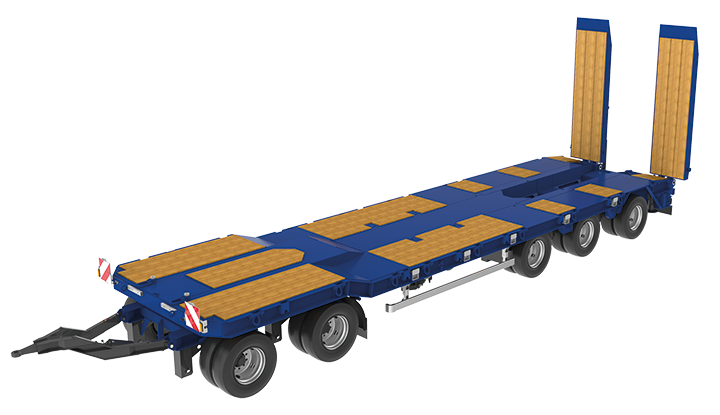

TN-L

IT NEVER REACHES ITS LIMIT

The TN-L type differs from the TU only by a built-in trailing steering axle and the additional air suspension. This makes it even more flexible in use, as your TN-L is even mor e maneuverable and even extreme payloads can be handled easily.

SEND REQUEST NOW!

Your benefits
  • Comprehensive screwed-on accessories, also for load securing
  • Quick and safe movement for loads
  • Bend-stiffened and more robust vehicle frame
  • Reliability and durability
  • Trailing steering axle
  • Increased maneuverability in action


Technical features

+



Axle load


    (depending on country-related regulations)
(technical)


10 t at 80 km/h

12 t at 80 km/h

+



Loading height



875 mm

+



Tires



245/70 R 17.5
205/70 R 17.5

+



Vehicle width



2,550 mm / 2,750 mm

+



Loading area length



7,300 mm / 7,400 mm / 8500 mm

+



Axle spacing



1,310 mm / 1,360 mm

+



Number of axles



5-6

+



Surface area refinement



Durability ensured with high-quality paintwork with zinc-dust base coat

Accessories

General accessories

+



Full-length plastic tool box under the loading area (screwable)



+



Spare wheel holder (screwable)



+



Rubber lining



+



Warning plate



Drawbar

+



Offset drawbar with 40, 50, CH eye, VBG eye and 40/50 swiveling drawbar eye



Loading area

+



Front stanchion pockets (screwable)



+



Load securing rails



+



Roll stem


+   Collapsible width extension (screwable)
+   Load trestle (screwable)

Ramp

+



Hydraulic ramp sideshift



+



Hydraulic landing legs


+   Climbing pads on the ramp
+   1- or 2-part ramp

Downloads

High
maneuverability
Highest
payloads
Comprehensive
accessories

TN-L in action
