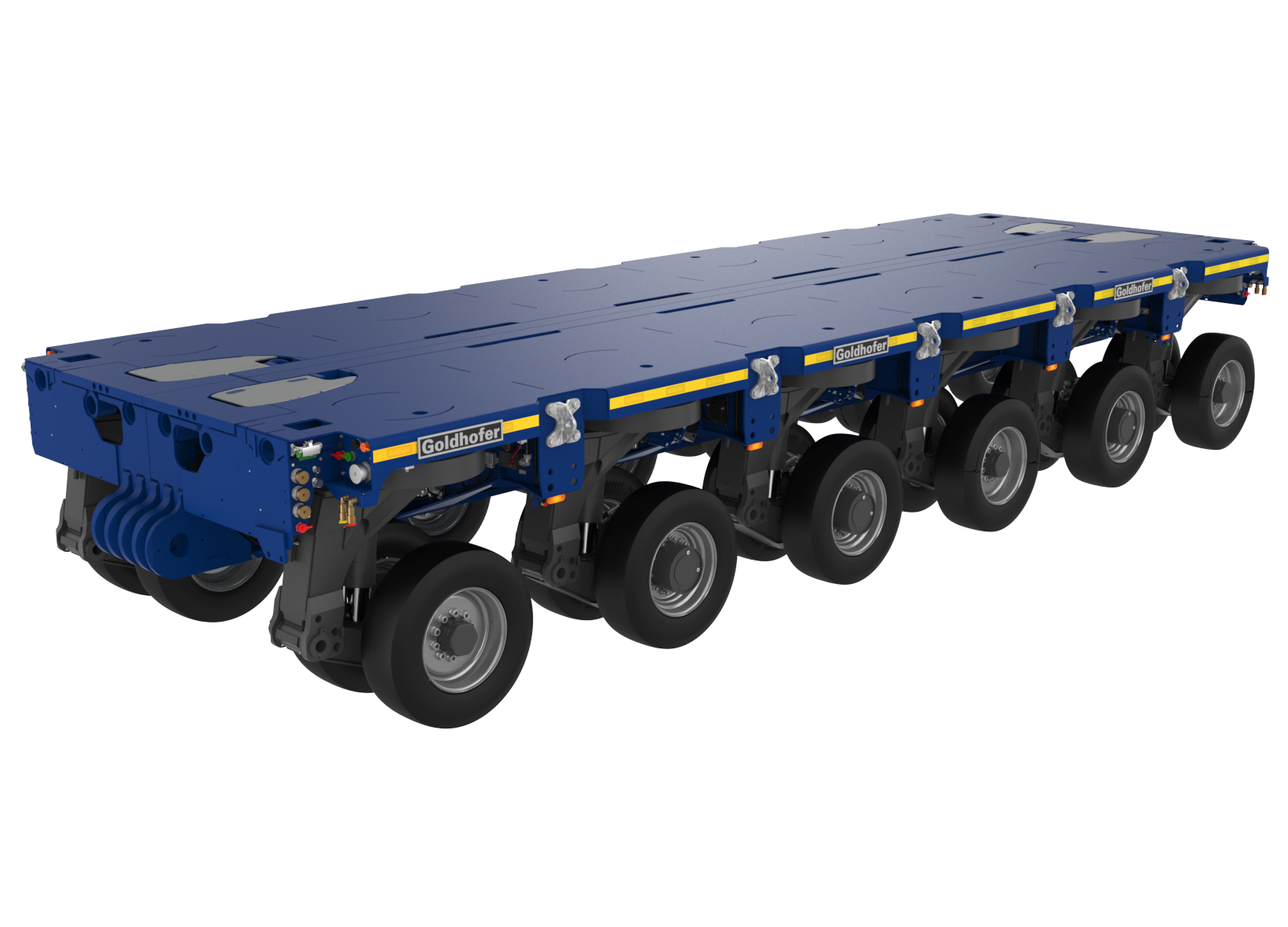

PST/SL-ES (285)
THE STRONGEST MODULE
Modern heavy transport operations face a growing conflict between maximum stability and high manoeuvrability. With the PST/SL-ES (285), Goldhofer solves this challenge in a new way. The heavy-duty module enables a variable track width under load, allowing it to adapt flexibly to changing transport requirements. Combined with an exceptionally high bending moment, an axle load of 48.4 t PST/ES-E and a tractive force of 162 kN, the PST/SL-ES (285) opens up new possibilities for transport concepts that previously could only be realized with significantly wider vehicle combinations.
Your benefits
- Variable track width under load
- Optimal balance between lateral stability and manoeuvrability during transport
- Track width adjustment at the push of a button
- Quick adaptation to different route sections without modification work
- High lateral stability even at a basic width of 3,000 mm
- Lateral stability on the level of significantly wider parallel combinations Safe transport with a compact vehicle configuration
- Maximized bending moment
- Heavy and compact loads can be transported in single-width configuration
Technical features
| + | Single tires | 285/70 R 19,5 | ||
| + | Axle load | 48,4 t at 1 km/h | ||
| + | Traction force (per driven axle line) | 162 kN | ||
| + | Basic width | 3,000 mm | ||
| + | Track width (basic width) | 2,080 mm | ||
| + | Track width (extended) | 2,380 mm | ||
| + | Axle spacing | 1,500 mm | ||
| + | Axle compensation | ± 325 mm |
Accessories and options
| General Accessories | |||
| + | Radio remote | ||
| + | Cable remote | ||
| + | Emergency cable remote | ||
| PST PowerPacks | |||
| + | 155 kW/210 PS, Width 2,400 mm, Deutz (TIER 3) | ||
| + | 207 kW/280 PS, Width 2,400 mm, Cummins (TIER 4 FINAL & STAGE V) | ||
| + | 360 kW/490 PS, Width 2,400 mm/ 3,000 mm, Deutz (TIER 3) | ||
| + | 390 kW/530 PS, Width 3,000 mm, Deutz (TIER 4 FINAL & STAGE V) | ||
