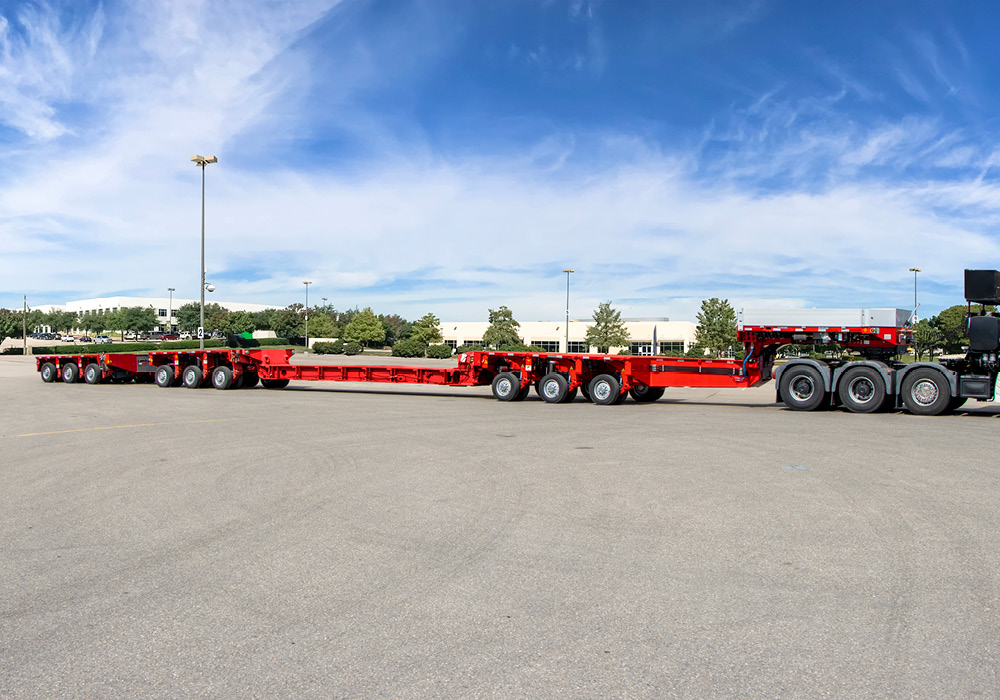

»P12 PLUS«

MASTER OF THE HIGHWAY

The Goldhofer »P12 PLUS« is an innovative, flexible, and efficient transportation solution. Due to its modular design, it offers a PLUS of multiple combinations, allowing configuration for any project.

SEND REQUEST NOW!

Your benefits
  • High adaptability
  • Can be individually adapted to any transportation task



  • Multiple modular combinations
  • Innovative design offers optimal dead weight-to-payload ratio in any transportation configuration



  • Ease of operation
  • Easy reverse driving with active automatic steering maximizing efficiency and time-savings

Technical features

+   Axle load
(depending on countryrelated regulations)

12 t
+   Loading height   1,085 mm (+400 mm/-200 mm)
+   Axle compensation   600 mm
+   Tires   245/70 R 17.5
+   Vehicle width   2,990 mm
+   Max. steering angle   ± 60°
+   Fifth wheel load   26 t
+   Swing clearance radius   2,800 mm
+   Swing clearance radius long gooseneck   3,400 mm
+   Gooseneck   Hydraulic, Center beam, opt. long
+   Axle spacing   1,525 mm
+   Spacing between tridems   2,000/4,300 mm
+   Extendability   1 x 2,300 mm (per bogie)


Accessories and options

General accessories

+



Knorr “TIM”


+   “easyCONTROL” remote steering

Gooseneck

+



Spare wheel carrier



+

  Sidewalls
+   Premium tool box
+   Diesel power pack

Loading platform

+



Threaded bushings


+   Screw-in lashing rings
+   Sliding table

Equipment
+   Hydraulic Power Packs
+   Control Panel
+   Drawbar
+   Vessel Bridge
+   Excavator Decks
+   Turntables

Downloads

HIGH TRANSPORT
FLEXIBILITY
LARGE VARIETY
OF COMBINATIONS
EASY
REVERSE DRIVING

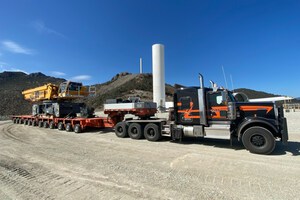

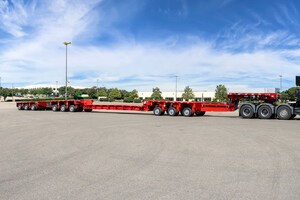

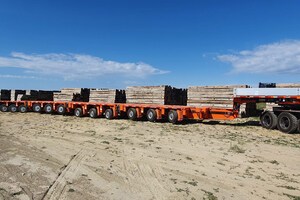

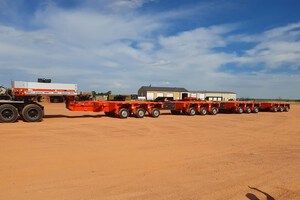

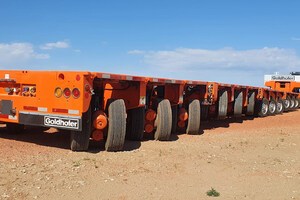

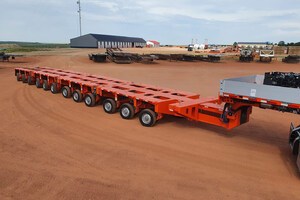

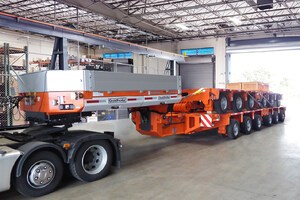

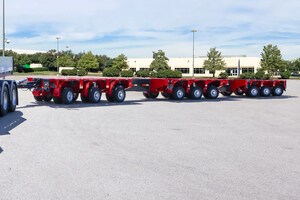

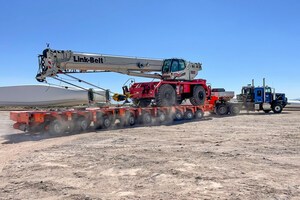

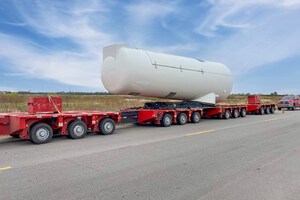

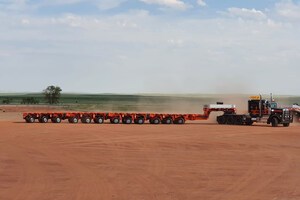

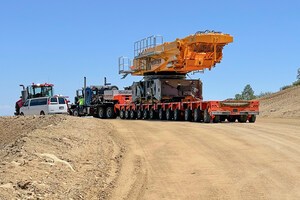

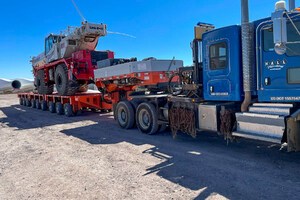

»P12 PLUS« in action

EPISODE 1

EPISODE 2

EPISODE 3

EPISODE 4

EPISODE 5

EPISODE 6

EPISODE 7
