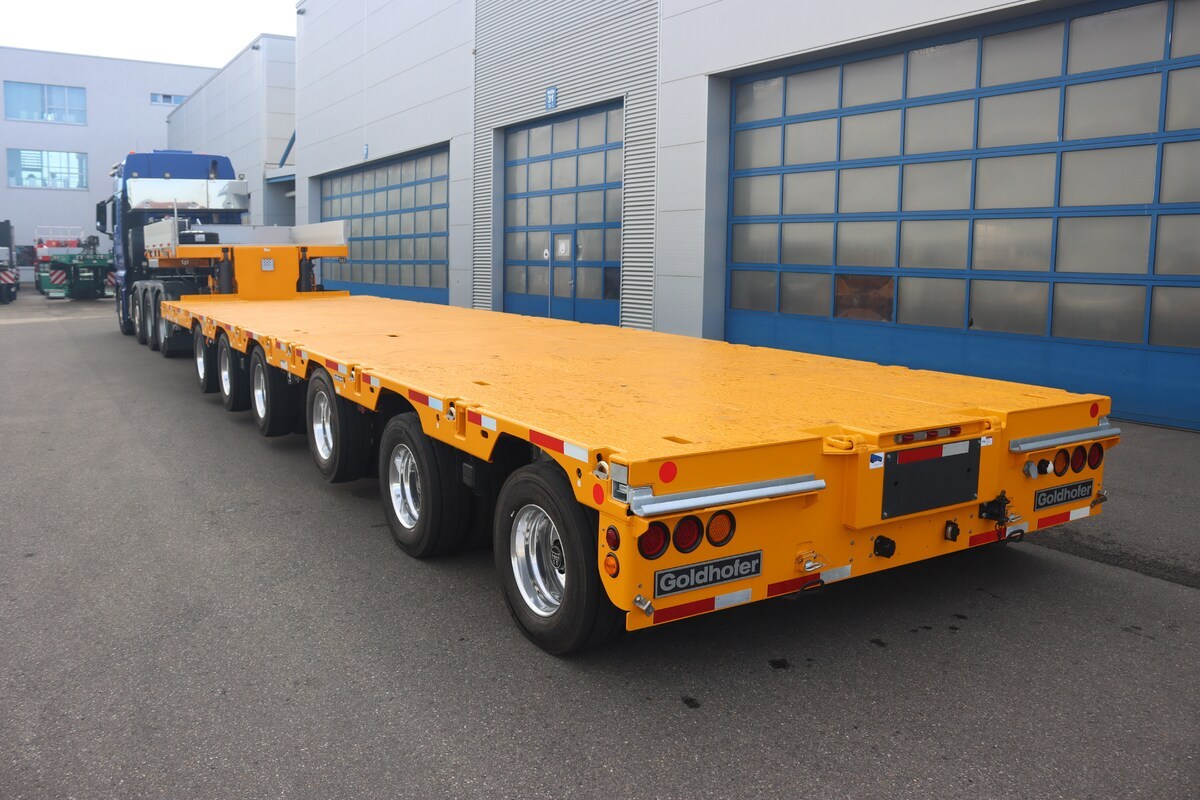

STZ-H/L 6

NORTH AMERICA HIGH PERFORMER

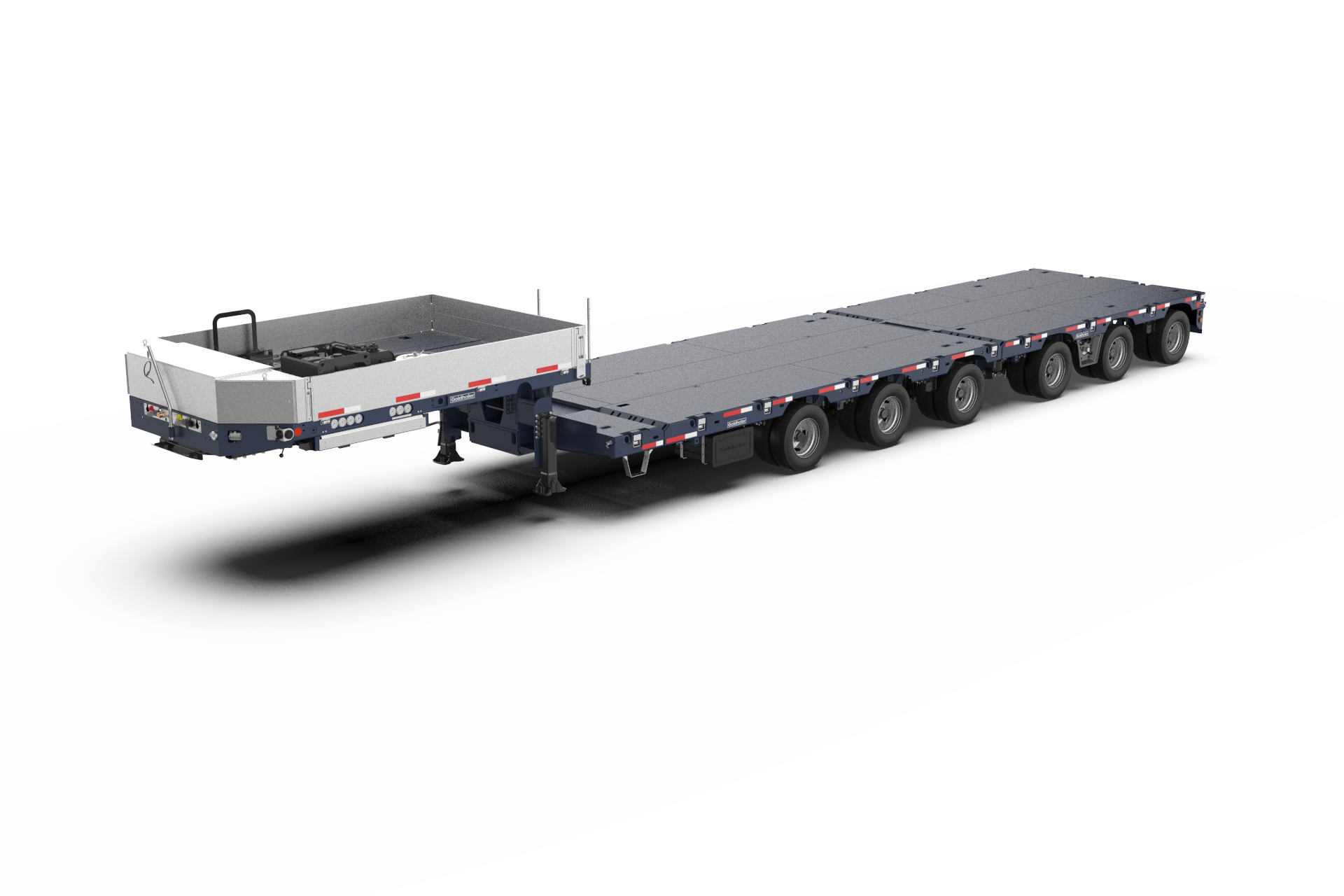

Our semi lowloaders are tailor-made to the needs of North American transport industry. The STZ-H 6 is equipped with tridem axle groups. The low driving height makes the shortest permittable route for your wide range of cargos possible.

SEND REQUEST NOW!

Your benefits

Wide trailer with hydraulic or air suspension
Highest side stability for maximum transport safety

Hydraulic gooseneck
Optimal ground clearance when passing railway crossings and other obstacles

Up-to-date steering concept with the possibility of radio remote control override
Optimum maneuverability to help to manage and enter tight corners and jobsites

Intelligent telescopic design
Quickly ready in operation

Technical features

+	Axle load	26,455 lbs at 50 mph [12 t]
+	Loading height* (H)	3‘ 1“ (+6.7“/-3.5“) [950 mm (+170 mm/-90 mm)]
+	Loading height* (L)	3‘ 1“ (+4.5“/-4.1“) [940 mm (+115 mm/-105 mm)
+	Axle compensation*	10.2“ / 8.6“ [260 mm/ 220 mm]
+	Lift Axles	1-4
+	Twin tires	245/70 R 17.5
+	Vehicle width	118“
+	Max. steering angle	± 45°
*for trailer with hydraulic suspension and basic width 118‘‘

Accessories and options

General accessories
+		Knorr “TIM” / Wabco “Smartboard”
+		“easyCONTROL” remote steering
+		Storage boxes under the loading platform
+		Working lights
+		Lift axle

Gooseneck
+		Spare wheel carrier
+		High front wall
+		Sidewalls
+		Premium tool box
+		Loading ramp + Premium tool box
+		Cable winch
+		Stowage aids for accessories
+		Diesel power pack

Loading platform
+		Long material trestle, stanchion pocket strip
+		Outriggers
+		Threaded bushings
+		Load-securing trestle
+		Sliding table
+		Insertable wheel recesses

Rear
+		Various rear designs
+		Hydraulic ramp sideshift
+		Climbing pads
+		Mechanical/hydraulic landing legs
+		Detachable ramps
+		Ramps in a variety of widths, lengths and coverings
