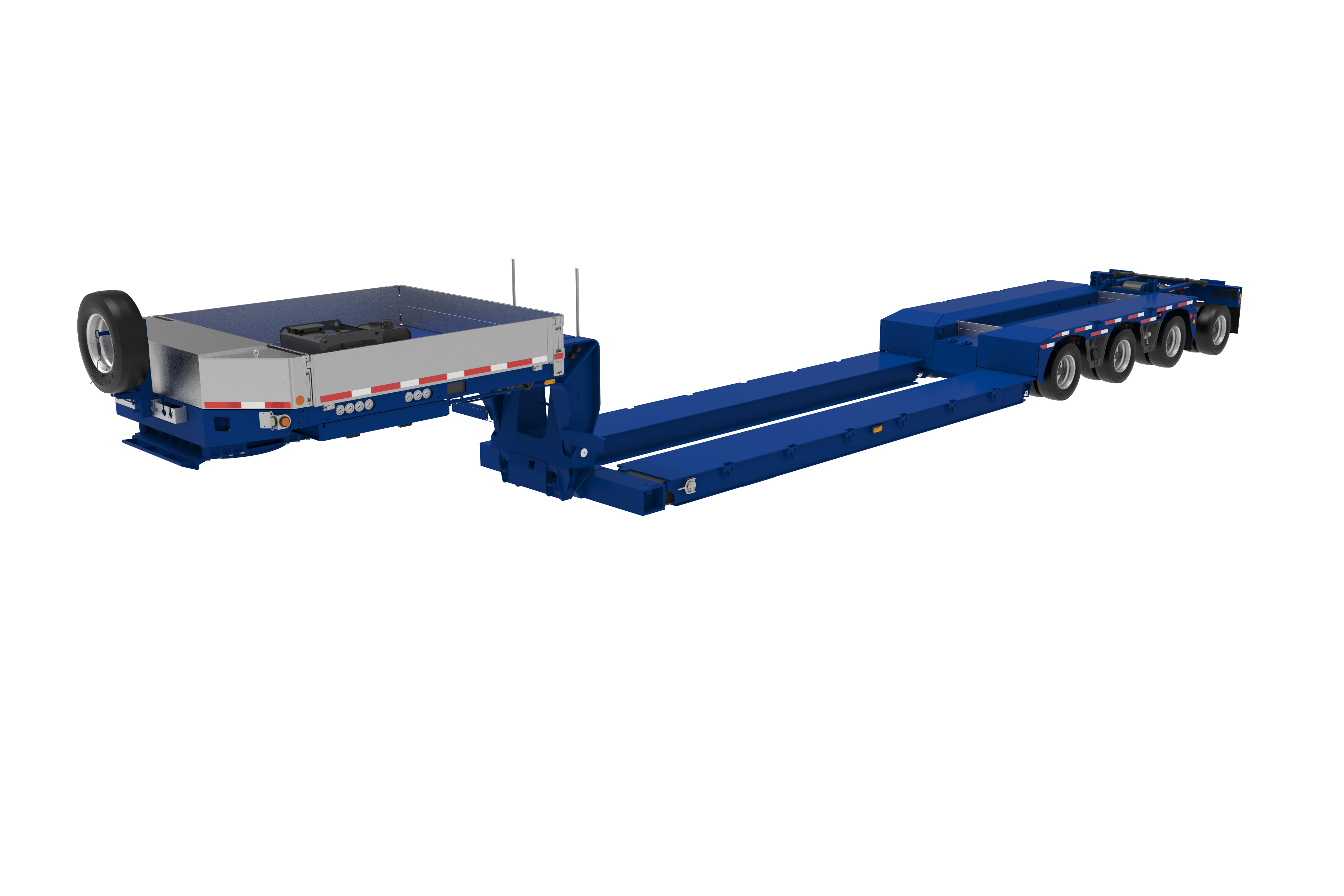

STZ-VL
SIMPLY RELIABLE
In the tough daily transport routine, time counts above all. In order to load and unload various loads as quickly as possible, our STZ-VL lowboy trailer can be driven over from the front. With increasing weight and volumes of the loaded goods, it is also crucial that the vehicles themselves are as light as possible and, at the same time, able to carry high payloads. The STZ-VL is a true champions in this case and it will make your transports safe and efficient.
Your benefits
- Horizontal pin between lowdeck and bogie
- Versatile vehicle combinations for the most varied utilizations and maximum extension
- Can be combined with jeep dollies
- Simple increase of the payload
- User-friendly operation of the vehicle
Technical features
| + | Axle load |
| ||
| + | Loading height | depending on the design of the deck | ||
| + | Axle compensation | 270 mm | ||
| + | Tires | 245/70 R 17.5 | ||
| + | Vehicle width | 2,550 mm / 2,750 mm | ||
| + | Max. steering angle | ± 45° | ||
| + | Center beam fifth wheel load | 26 t / 35 t / 44 t | ||
| + | Outside position beams fifth wheel load | 20 t / 30 t | ||
| + | Swing clearence radius | 2,100-2,800 mm | ||
| + | Gooseneck | Hydraulic | ||
| + | Bridge design construction height | 200-300 mm | ||
| + | Extendability | Rigid or single telescopic | ||
| + | Width excavator boom recess | 760 mm / 960 mm | ||
| + | Number of axles | 2-4 axles | ||
| + | Optional Trail King Booster axle | |||
| + | Optional Flip axle | |||
Accessories and options
| General accessories | |||
| + | Knorr “TIM” / Wabco “Smartboard” | ||
| + | “easyCONTROL” remote steering | ||
| + | Storage boxes under the loading platform | ||
| + | Working lights | ||
| + | Lift axle | ||
| Gooseneck | |||
| + | Spare wheel carrier | ||
| + | High front wall | ||
| + | Sidewalls | ||
| + | Premium tool box | ||
| + | Loading ramp + Premium tool box | ||
| + | Cable winch | ||
| + | Stowage aids for accessories | ||
| + | Diesel power pack | ||
| Loading platform | |||
| + | Long material trestle, stanchion pocket strip | ||
| + | Outriggers | ||
| + | Threaded bushings | ||
| + | Load-securing trestle | ||
| + | Sliding table | ||
| + | Insertable wheel recesses | ||
| Rear | |||
| + | Various rear designs | ||
| + | Hydraulic ramp sideshift | ||
| + | Climbing pads | ||
| + | Mechanical/hydraulic landing legs | ||
| + | Detachable ramps | ||
| + | Ramps in a variety of widths, lengths and coverings | ||
Downloads
dead Weight
between the low-
deck and bogie
operation

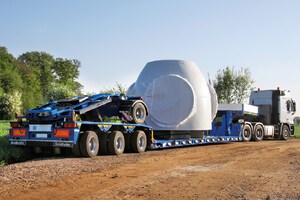

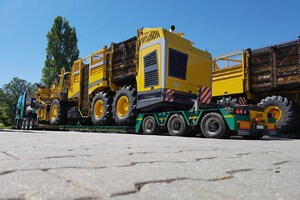

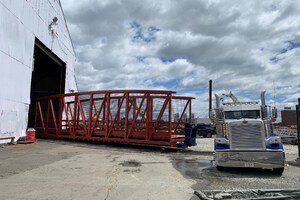

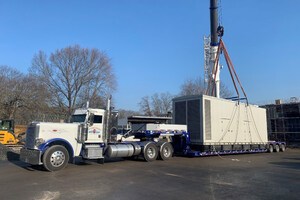

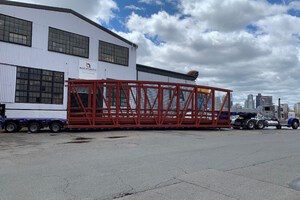

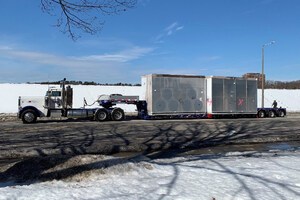

STZ-VL in action
