THP/CA
EFFICIENT PERFORMANCE
The THP/CA, ranging from two to six axle lines and the dual lane technology, can be configured thanks to well engineered design under full load. The CA module ensures expansion of the width of the entire modular trailer, without needing a crane or forklift while complying with the various legal requirements of the individual states and provinces.
Your benefits
- Operation with basic width from 16.0-20.0 ft
- Change of width under load without crane or forklift
- Vehicle frame in longitudinally split design
- Usage of existing standard accessories such as gooseneck, drop deck etc.
- Cost savings for long-distance hauling to job sites
Technical features
| + | Twin tires | 245/70 R 17.5 | |||
| + | Axle load | 24 t at 40 km/h | |||
| + | Loading deck width | 4,260 mm | |||
| + | Vehicle width 6.0 ft wide axles | 4,800-6,100 mm | |||
| + | Vehicle width 7.0 ft wide axles | 5,500-6,100 mm | |||
| + | Axle spacing | 2,770 mm | |||
| + | Max. steering angle | ± 60° | |||
Accessories and options
| General accessories | |||
| + | THP/DC Diesel hydraulic power pack | ||
| + | “easyCONTROL” remote steering | ||
| + | Working lights | ||
| + | ALCOA aluminum rims with Durabright finish | ||
| + | Threaded bushings | ||
| Towing equipment and goosenecks | |||
| + | Swivel arm THP/DC | ||
| + | Swivel arm THP/DR | ||
| + | Drawbar 2,000 m, 3,000 m, 5,000 m, 7,000 m and 9,000 m | ||
| + | Universal gooseneck 26 t, 35 t, 45 t and 52 t | ||
| + | Gooseneck THP/DC | THP/DR | ||
| + | Gooseneck THP/CA | ||
| Loading equipment | |||
| + | Drop decks | ||
| + | Vessel bridges | ||
| + | Excavator decks | ||
| + | Intermediate spacers | ||
| + | Spacer | ||
| Turntable | |||
| + | 100 t / 200 t | ||
| Tower adapter | |||
| + | RA 2 | ||
| + | RA 3 | ||
| + | RA 4 | ||
| Higher girder bridge | |||
| + | »FAKTOR« 5 | ||
| + | »FAKTOR« 5.5 | ||
Downloads
under load
flexibility
1,800-6,000 mm

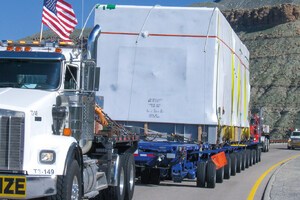

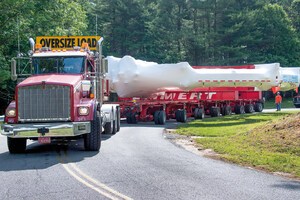

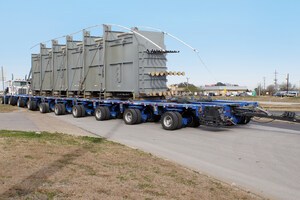

THP/CA in action
