THP/DC
MAXIMUM FLEXIBILITY ON THE ROAD
For haulage operations across several borders, trailer width needs to be quickly adapted to the various regulations without having to spend lots of time re-configuring the Dual Lane trailer at critical points on the journey. The THP/DC is ideally suited for this mission, thanks to the hydraulic widening system.This feature allows you to change the trailer width while rolling. The complete widening process will be done quickly via wireless remote control. This keeps your personnel in the safe zone and not between the truck and trailer.
Your benefits
- Widening under load while rolling
- Operation (widening, levelling, steering) via wireless remote control
- New ideas combined with proven ball bearing race ring technology
- Reduced transport time
- Low maintenance and long service life
Technical features
| + | Twin tires | 245/70 R 17.5 | |||
| + | Axle load | 24 t at 40 km/h | |||
| + | Loading deck width | 4,260 mm | |||
| + | Vehicle width | 4,260-6,100 mm | |||
| + | Axle spacing | 2,770 mm | |||
| + | Max. steering angle | ± 60° | |||
Accessories and options
| General accessories | |||
| + | THP/DC Diesel hydraulic power pack | ||
| + | “easyCONTROL” remote steering | ||
| + | Working lights | ||
| + | ALCOA aluminum rims with Durabright finish | ||
| + | Threaded bushings | ||
| Towing equipment and goosenecks | |||
| + | Swivel arm THP/DC | ||
| + | Swivel arm THP/DR | ||
| + | Drawbar 2,000 m, 3,000 m, 5,000 m, 7,000 m and 9,000 m | ||
| + | Universal gooseneck 26 t, 35 t, 45 t and 52 t | ||
| + | Gooseneck THP/DC | THP/DR | ||
| + | Gooseneck THP/CA | ||
| Loading equipment | |||
| + | Drop decks | ||
| + | Vessel bridges | ||
| + | Excavator decks | ||
| + | Intermediate spacers | ||
| + | Spacer | ||
| Turntable | |||
| + | 100 t / 200 t | ||
| Tower adapter | |||
| + | RA 2 | ||
| + | RA 3 | ||
| + | RA 4 | ||
| Higher girder bridge | |||
| + | »FAKTOR« 5 | ||
| + | »FAKTOR« 5.5 | ||
Downloads
under load
on the fly
operation
4,200-6,000 mm

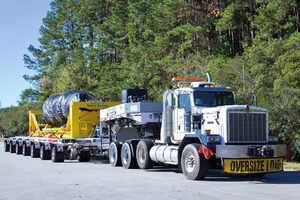

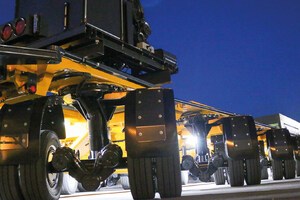

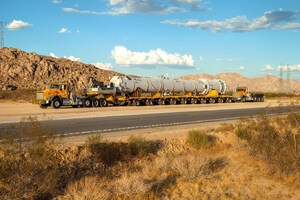

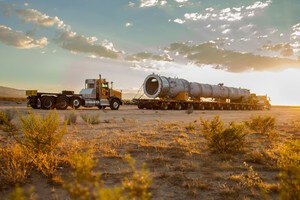

THP/DC in action
