FTV 550
SAFE AND PROVEN HUNDREDS OF TIMES
Goldhofer's FTV 550 takes the progressive development of wind turbines into account. The FTV 550 is able to accommodate even the largest rotor blades. The ingenious FTV 550 has already proven itself in practical situations for the transport of various rotor blade generations and easily masters them.
Your benefits
- Display for essential application parameters
- Safe and reliable operation
- Installed between the modular chassis to reduce the total height
- Very low center of gravity for increased safety
- Closed working platform
- Safety at work when attaching the blades
Technical features
| + | Dead weight | 15.7 t | |||
| + | Ballast weight | 18 t | |||
| + | Lifting torque | 550 mt | |||
| + | Raised maximum angle | 60° | |||
| + | Pitch angle | endless | |||
Accessories and options
| General accessories | |||
| + | Wind measuring on the blade tip | ||
| + | Remote radio control with axle pressure indicator and wind indicator | ||
| + | Railing for safe work on the adaptor | ||
| + | Access ladder | ||
| Rotor blade adaptor | |||
| + | Dead weight 2.6 t for diameter up to 3,400 mm | ||
Downloads

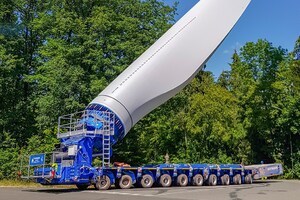

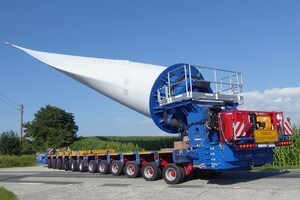

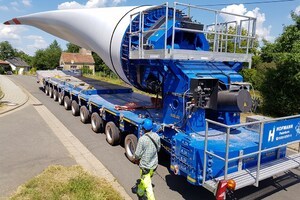

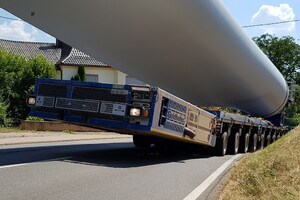

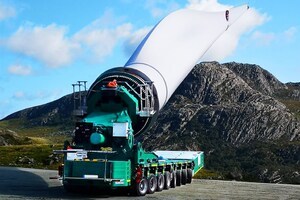

FTV 550 in action
