RA 2

WE CAN HELP YOU TO BUILD THE FUTURE

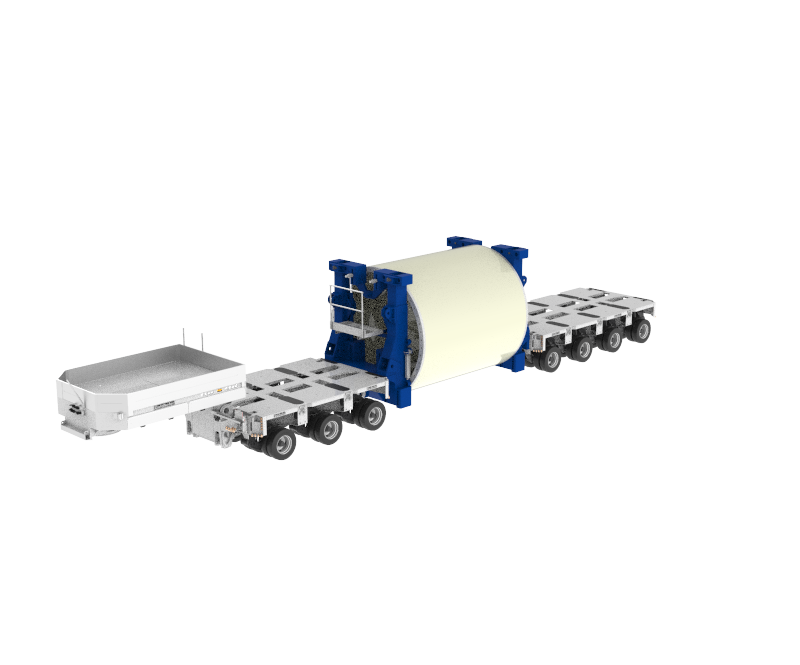

Our tower adapters, with a payload up to 180 tons, are designed for the transport of heavy tower segments. The adapters can be coupled either with a free-turning device or directly between our heavy-duty modules. Thanks to the installed free-turning device, even the tightest hairpin bends, along with obstacles of up to 3 m in height can be overcome.


SEND REQUEST NOW!

Your benefits
  • Complete product range
  • Optimized for the whole spectrum for tower segments
  • Combinable with dolly or heavy-duty modules
  • Economical and flexible utilization of existing vehicle fleet
  • Hydraulic sideshift for easier positioning during load positioning
  • User-oriented and time-saving operation
  • Aluminum work platform with access ladder
  • Increased safety in day-to-day action

Technical features

RA 80

+   Max. payload (depending on combination):

2 x 50 t

+



Inner flange (diameter):



1,850 - 5,170 mm

+



Outer flange (diameter):



1,620 - 4,910 mm

+



Swing clearance radius with FTD:



4,900mm / 5,700mm / 6,500mm

+



Insertable internal tube for tower diameter up to:



6,330 mm (inner flange)
5,850mm (outer flange)

RA 110

+   Max. payload (depending on combination):

2 x 60 t

+



Inner flange (diameter):



2,300 - 5,740mm

+



Outer flange (diameter):



2,150 - 5,100 mm

+



Swing clearance radius with FTD:



4,900mm / 5,700mm / 6,500mm

+

  Insertable extensions for tower diameter up to:

6,780 mm (inner flange)
6,150 mm (outer flange)

Downloads

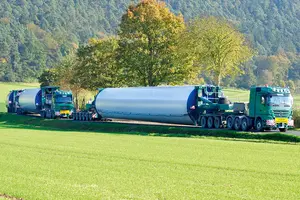

TYP RA 2 in action
