Type RA 3

WE CAN HELP YOU TO BUILD THE FUTURE

Our tower adapters, with a payload up to 180 tons, are designed for the transport of heavy tower segments. The adapters can be coupled either with a free-turning device or directly between our heavy-duty modules. Thanks to the installed free-turning device, even the tightest hairpin bends, along with obstacles of up to 3 m in height can be overcome.


Your benefits
  • Complete product range
  • Optimized for the whole spectrum for tower segments
  • Combinable with dolly or heavy-duty modules
  • Economical and flexible utilization of existing vehicle fleet
  • Hydraulic sideshift for easier positioning during load positioning
  • User-oriented and time-saving operation
  • Aluminum work platform with access ladder
  • Increased safety in day-to-day action

Technical features

RA 3
+ Maximum payload   2 x 50 t (depending on combination)
+ Inner flange (diameter)   2,400-5,400 mm
+ Outer flange (diameter)   2,260-5,300 mm
+ Swing clearance radius   4,200 mm / 4,900 mm
    5,700 mm / 6,500 mm
+ Support cylinder for bogies with 600 mm lift

Downloads

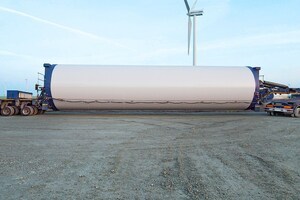

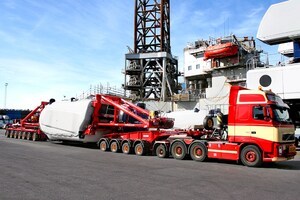

TYP RA 3 in action
