PST/SL-E
THE ALL-ROUNDER
When self-propelled vehicles are utilized, they normally must be able to transport various loads – and it is therefore necessary to determine the transport combination to the load in the best possible way. PST/SL-E can be combined with all vehicles of the SL-family, regardless of whether they are intended to be self-propelled or towed heavy-duty modules. Combined with its enormously high traction force and electronic multiway steering, the PST/SL-E is always your vehicle of choice when exceptional performance and maximum flexibility are required.
Your benefits
- Economic delivery to the application location
- Power reserves for unforeseeable project situations
- Extremely high bending moment
- Best possible safety tolerances, even with extreme loads
- Additional load lifting point
- Safe loading for simplified mobilization
Technical features
| + | Twin tires | 215/75 R 17.5 | |||
| + | Axle load | 45 t at 1 km/h | |||
| + | Dead weight (4-axles) | 17.1 t | |||
| + | Axle compensation | 600 mm | |||
| + | Traction force (per driven axle line) | 180 kN | |||
| + | Vehicle width | 3,000 mm | |||
| + | Axle spacing | 1,500 mm | |||
| + | Max. steering angle | ± 135° | |||
| + | Number of axles | 4, 6, 8 | |||
Accessories and options
| General Accessories | |||
| + | Radio remote | ||
| + | Cable remote | ||
| + | Emergency cable remote | ||
| PST PowerPacks | |||
| + | 155 kW/210 PS, Width 2,400 mm, Deutz (TIER 3) | ||
| + | 207 kW/280 PS, Width 2,400 mm, Cummins (TIER 4 FINAL & STAGE V) | ||
| + | 360 kW/490 PS, Width 2,400 mm/ 3,000 mm, Deutz (TIER 3) | ||
| + | 390 kW/530 PS, Width 3,000 mm, Deutz (TIER 4 FINAL & STAGE V) | ||
Downloads
North America
vehicle frame
synchronization
combination
possibilites

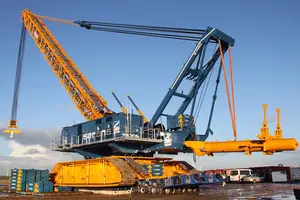

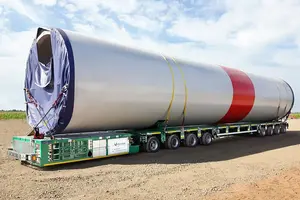

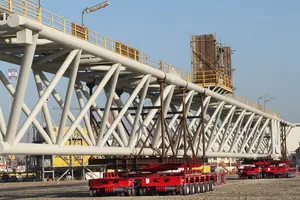

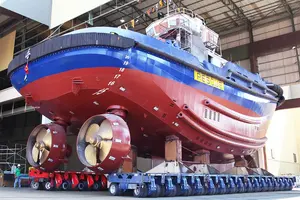

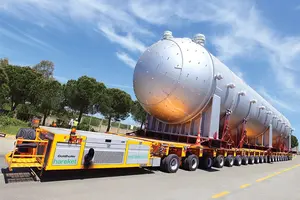

PST/SL-E in action
