THP/SL-L
LIGHT WORK FOR TRANSPORTATION
THP/SL-L modules unfold their full strength in road transport for particularly heavy loads. Loading goods and cargo are getting heavier, larger, and all above, higher. This requires a low dead weight and a low construction height of, for example, loading decks with a simultaneously high bending moment.
Your benefits
- Ideal combination between dead weight and bending moment
- Optimized for on road operation with limited axle loads
- Combinable with other heavy-duty modules from the SL-family
- Extension and higher flexibility for the vehicle fleet
- Maximum possible closed loading area
- Higher torsional stiffness and working safety
Technical features
| + | Twin tires | 215/75 R 17.5 | |||
| + | Axle load | 26.1 t at 20 km/h | |||
| + | Dead weight (4-axles) | 11.1 t | |||
| + | Axle compensation | 600 mm | |||
| + | Vehicle width | 3,000 mm | |||
| + | Axle spacing | 1,500 mm | |||
| + | Max. steering angle | ± 55° | |||
| + | Number of axles | 2-8 | |||
Accessories and options
| General accessories | |||
| + | Hydraulic power pack | ||
| + | Operation panel | ||
| + | Cable remote control | ||
| + | Radio remote control | ||
| Towing equipment | |||
| + | Swivel arm for single widths | ||
| + | Center towing device for parallel combination (1+1/2) | ||
| + | Center towing device for parallel combination (1+1) | ||
| + | Drawbar 2 m, 3 m and 5 m | ||
| Gooseneck | |||
| + | Combination gooseneck 35 t | ||
| + | Universal gooseneck 35 t, 45 t and 52 t | ||
| Turntable | |||
| + | 100 t / 200 t [1] | ||
| + | 300 t / 400 t [1] | ||
| + | 600 t [1] | ||
| Flatbed deck | |||
| + | Construction height 250 mm / 300 mm | ||
| + | Length 7,000-12,000 mm [2] | ||
| + | With / without coupling point, overrideable / non-overrideable | ||
| Vessel deck | |||
| + | Construction height 450 mm, 500 mm or 650 mm | ||
| + | Length 7,000-13,000 mm [2] | ||
| + | Width 3,000-6,000 mm | ||
| + | Fixed or extendable | ||
| Excavator deck | |||
| + | Construction height 350 mm, 450 mm or 500 mm | ||
| + | Length 7,000-13,000 mm [2] | ||
| + | Fixed or extendable | ||
| Spacer | |||
| + | 8,000-15,000 mm (depending on version extendable up to 40,000 mm) | ||
| + | Extension stages 1-4 | ||
| Intermediate deck | |||
| + | Length 3,000 mm-9,000 mm | ||
| Blade Transport Device | |||
| + | FTV 550 | ||
| + | FTV 850 | ||
| High girder bridge | |||
| + | »FAKTOR« 5.5 | ||
| + | »FAKTOR« 5 | ||
| Tower adapter | |||
| + | RA 2 | ||
| + | RA 3 | ||
| + | RA 4 | ||
| [1] Capacity per turntable [2] Special lengths from 3,000-15,000 mm on request | |||
Downloads
North America
flexibility
ball bearing
race ring

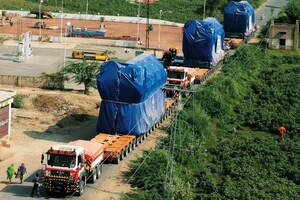

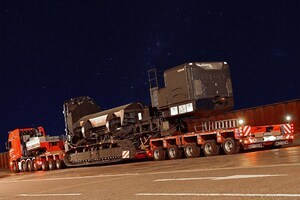

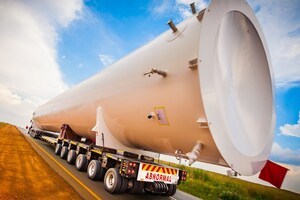

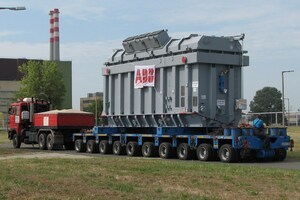

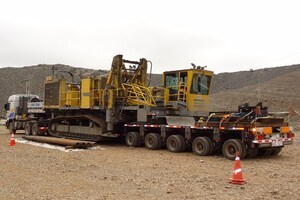

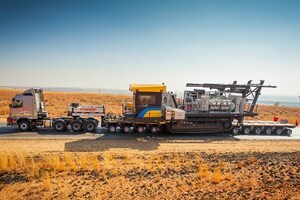

THP/SL-L in action
