THP/SL-S

A LIGHTWEIGHT FOR THE HEAVIEST LOADS

The low dead weight and the lowloader variants of our THP/SL-S lightweight types enable motorway travel and crossing bridges which are normally only possible with detours with heavier systems. This means that higher payloads can be transported at the same time.

Your benefits
  • Extremely low dead weight
  • Very high payloads
  • Various tire sizes
  • Ideal adjustment for loading height or more robust site utilization
  • Widest-possible track in the SL-family
  • Higher lateral stability


Technical features

+ Single tires [1]   245/70 R 17,5
+ Axle load [1]   15.6 t at 20 km/h
+ Dead weight (4-axles) [1]   9.6 t
+ Single tires [2]   285/70 R 19,5
+ Axle load [2]   23 t at 10 km/h
+ Dead weight (4-axles) [2]   10.2 t
+ Maximum steering angle   ± 55°
+ Vehicle width   3,000 mm

[1] Tires 245/70 R 17,5
[2] Tires 285/70 R 17,5

Accessories and options

General accessories

+ Hydraulic power pack
  Hatz   10 kW/13.6 PS
  Kohler   17.9 kW/24.3 PS
+ Operating panel
+ Cable remote control
+ Radio remote control

Towing equipment

+ Swivel arm for single widths
+ Center towing device for parallel combination (1+1/2)
+ Center towing device for parallel combination (1+1)
+ Drawbar 2 m, 3 m and 5 m

Gooseneck

+ Combination gooseneck   35 t
+ Universal gooseneck   35 t, 45 t and 52 t

Turntable

+ 100 t / 200 t [2]
+ 300 t / 400 t [2]
+ 600 t [2]

Flatbed deck

+ Construction height   250 mm / 300 mm
+ Length   7,000-12,000 mm [1]
+ With/without coupling point,
overrideable/non-overrideable

Vessel deck

+ Construction height   450 mm, 500 mm or 650 mm
+ Length   7,000-13,000 mm [1]
+ Width   3,000-6,000 mm
+ Fixed or extendable

Excavator deck

+ Construction height   350 mm, 450 mm or 500 mm
+ Length   7,000-13,000 mm [1]
+ Fixed or extendable

Spacer

+ 8,000-15,000 mm (depending on version extendable up to 40,000 mm)
+ Extension stages 1-4

Intermediate bridge

+ Length 3,000 mm – 9,000 mm

Blade transport device

+ FTV 300
+ FTV 500

High girder bridge

+ »FAKTOR« 5.5
+ »FAKTOR« 5

Tower adapter

+ RA 2
+ RA 3
+ RA 4

[1] Special lengths from 3,000-15,000 mm on request
[2] Capacity per turntable

Downloads

Low dead
weight
Pendular axle with
ball bearing
race ring
Universally
combinable

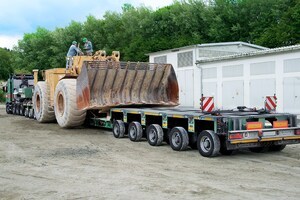

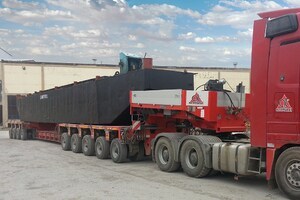

THP/SL-S in action
