SPZ-GP

FOR EXTREME APPLICATIONS

When longer loads have to go offroad, a conventional flatbed semi-trailer is often out of its depth, – not the case with our pendular axle vehicles. With an axle stroke of 600 mm and a steering angle of 60°, even the narrowest passages and difficult obstacles are no longer a challenge.


Your benefits
  • Sophisticated accessories for wind blades
  • Gentle wind blade transport solution
  • Rail system for shortening the loading area in loaded condition
  • Simplified driving through tight positions
  • Axle stroke of 600 mm
  • Steering angle up to 60°
  • All-in-one solution for road transport and offroad transport


Technical features

+



Axle load





    (depending on country-related regulations)
(technical)
  12 t at 80 km/h
12 t at 80 km/h
+   Fifth wheel load   26 t

+



Loading height



1,180 mm

+   Axle compensation   600 mm

+



Tires [1]



245/70 R 17.5

+



Vehicle width



2,550 mm

+



Swing clearance radius



2,400 mm / 2,800 mm

+



Extendability



3-times extendable

+



Number of axles



3

Accessories and options

General accessories

+



Knorr “TIM”/ Wabco “Smartboard”



+



Radio remote control



+



Storage boxes under the loading platform



+



Working lights


+   Dieselhydraulic power pack

Gooseneck

+



Spare wheel carrier



+



High front wall



+



Toolbox



Loading Area

+



Stake pocket strip



+



Threaded bushes


+   Load-securing trestle
+   Twistlocks
+   Rail system including sliding table
+   »BLADEX«

Downloads

High
maneuverability
High
axle stroke
Comprehensive
accessories

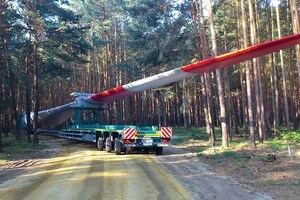

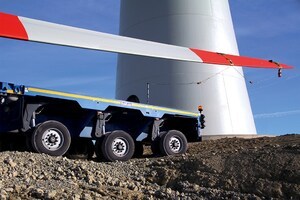

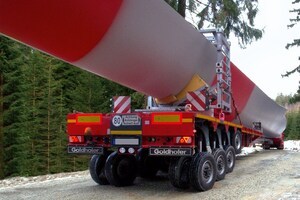

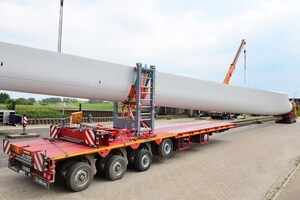

SPZ-GP in action
