VENTUM
WELL OVER 70 METERS?

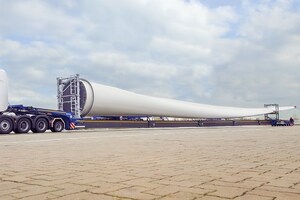

Today´s loads are getting longer and heavier. The wind power industry, in particular, is developing ever longer rotor blades which continue to push vehicles to their limits – but not with the »VENTUM«. Equipped with five extension stages and the capability to take on loads of well over 70 m, they are well prepared for the future.
Your benefits
- 5-times extendable
- Suitable for 5-axle tractor unit
- Ready for transporting the longest wind blades
- Enormous lift in gooseneck and in the chassis
- Simplified passage through tight positions such as tunnels or roundabouts without any conversion work
- Adjustable steering
- No co-driver required when driving as empty
Technical features
| + | Axle load |
| ||
| (depending on country-related regulations) (technical) | 12 t at 80 km/h 12 t at 80 km/h | |||
| + | Fifth wheel load | 33,5 t | ||
| + | Loading height | 1,240 mm | ||
| + | Axle compensation | 600 mm | ||
| + | Tires [1] | 245/70 R 17.5 | ||
| + | Vehicle width | 2,750 mm | ||
| + | Swing clearance radius | 3,400 mm | ||
| + | Extendability | 5-times extendable | ||
| + | Number of axles | 3-4 |
Accessories and options
| General accessories | |||
| + | Knorr “TIM”/ Wabco “Smartboard” | ||
| + | Radio remote control | ||
| + | Storage boxes under the loading platform | ||
| + | Working lights | ||
| + | Dieselhydraulic power pack | ||
| Gooseneck | |||
| + | Spare wheel carrier | ||
| + | High front wall | ||
| + | Toolbox | ||
| Loading Area | |||
| + | Stake pocket strip | ||
| + | Threaded bushes | ||
| + | Load-securing trestle | ||
| + | Twistlocks | ||
| + | Rail system including sliding table | ||
| + | »BLADEX« | ||
