STZ-VP (245)

THE SPECIALIST FOR EVERY ENVIRONMENT

Particularly voluminous and heavy loads require often special solutions in order to be transported in the first place. Our robust STZ-VP (245) pendulur axle / swing axle lowloader trailers are reliable on the spot and, due to their versatile combination options and extensive accessories, are an economical, maneuverable and powerful solution even for the heaviest loads.


Your benefits
  • Rigid and robust lowloader
  • Reliability and durability
  • Short chassis
  • Maximum loading area length
  • Maximum axle stroke of 600 mm
  • For optimum off-road mobility even with long vehicles


Technical features

+ Axle load
(depending on country-related regulations)   12 t at 80 km/h
(technical)   12 t at 80 km/h
+ Axle stroke   600 mm
+ Tires   245/70 R 17,5
+ Vehicle width   2,550 mm / 2,750 mm
+ Axle spacing   1,360 mm / 1,510 mm
+ Maximum steering angle   60°

Gooseneck

+ Fifth wheel load   20-40 t
+ Swing clearance radius   2,100-2,800 mm
+ Rigid /hydraulic
+ Center beam
+ External beam

Front bogie

+ Number of axles   1-3 axles


Bridge design

+ Flat bed, excavator bed
+ Construction height   200-450 mm
+ Extraction stages
+ Fixed or 1

Rear bogie

+ Width excavator trough*   680 mm / 880 mm
+ Number of axles   2-5 axles

*Depending on vehicle width

Accessories and options

General Accessories

+ Knorr “TIM”
+ “easyCONTROL” remote steering
+ »SmartControl«
+ Wide load marker boards
+ Working lights
+ Lift axle front bogie

Gooseneck

+ Spare wheel carrier
+ High front wall, can be combined with tarpaulin superstructures
+ Sidewalls
+ Premium tool box
+ Cable winch
+ Stowage aids for accessories
+ Electrohydraulic or dieselhydraulic power pack

Loading platform

+ Loading ramp
+ Inlay matresses
+ Outriggers

Downloads

Maximum loading
platform length
High flexibility
in use
High axle
compensation

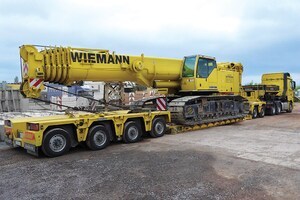

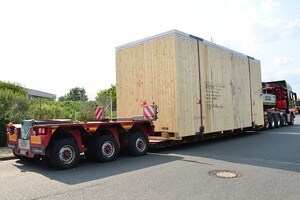

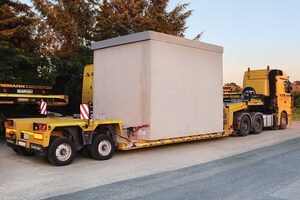

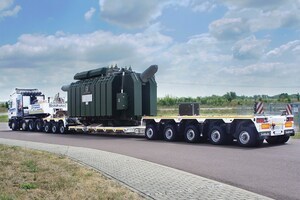

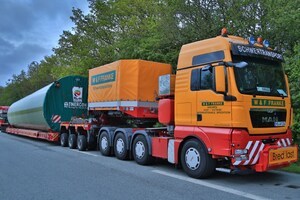

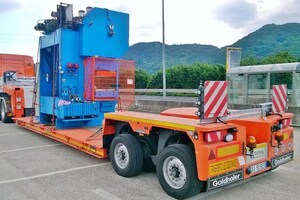

STZ-VP (245) in action
