»ARCUS« P | »ARCUS« PK

ALL-PURPOSE WEAPON FOR HEAVY LOADS

Our semi lowloaders of the »ARCUS« family are real workhorses - there is nothing they cannot handle in the payload class up to 130 t. The »ARCUS« family impresses with an innovative steering system. In combination with the extremely low loading height of just 790 mm, it provides you with the decisive advantage in terms of maneuverability, performance and efficiency.

SEND REQUEST NOW!

Your benefits
  • Combination of friction and forced steered pendular axles
  • Improved cornering characteristics and optimum adaptation of the steering to every extension stage



  • Standard equipment with Goldhofer »SmartControl«
  • Highest possible user-friendliness



  • Extremely low loading height of just 790 mm
  • Transportation of high loads

Technical features

+



Axle load
(depending on countryrelated regulations)
(technical)




12 t at 80 km/h
14 t at 25 km/h

+



Loading height



790 mm

+   Axle stroke   600 mm

+



Tires



245/70 R 17.5

+



Axle spacing



1,510 mm

+



Surface refinement



Durability ensured with high-quality finish with zinc-dust base coat


Gooseneck
+   Fifth wheel load
»ARCUS« P
»ARCUS« PK

20-35 t
26-35 t
+   Swing clearance radius   2,100-2,800 mm
+   Fixed / hydraulic
+   Center beam, Outside position beams

Front bogie (only »ARCUS« PK)
+   Number of axles   2-3
+   Maximum steering angle   65°

Extension stages
+   Rigid, single oder double telescopic

Rear bogie
+   Vehicle width
»ARCUS« P
»ARCUS« PK

2,550 mm / 2,750 mm / 3,000 mm
2,750 mm / 3,000 mm
+   Width excavator trough*   640 mm / 840 mm / 1,090 mm
+   Number of axles
»ARCUS« P
»ARCUS« PK

3-8
4-8
+   Max. steering angle   60°

*Depending on vehicle width

Accessoires and options

General accessories

+



Knorr “TIM”


+   »SmartControl«

+

  Wide load marker boards

+

  Storage boxes under the loading platform
+   Working lights
+   Lift axle

Gooseneck

+



Spare wheel carrier



+



High front wall, can be combined with tarpaulin superstructures



+

  Sidewalls
+   Premium tool box
+   Loading ramp
+   Cable winch
+   Stowage aids for accessories
+   Electrohydraulic or dieselhydraulic power pack

Loading platform

+



Long material trestle, stake pocket strip


+   Outriggers

+



Threaded bushes


+   Load-securing trestle
+   Excavator trough
+   Sliding table

Rear
+   Various rear designs, suspension rail
+   Hydraulic ramp sideshift
+   Climbing pads
+   Mechanical / hydraulical landing legs
+   Detachable ramps
+   Ramps in a variety of widths, lengths and flooring options

Download

Video

Optimum steering
Simple
operation
Extremely low
loading height

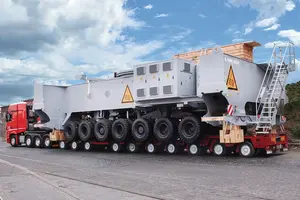

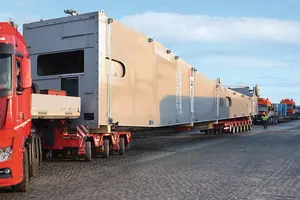

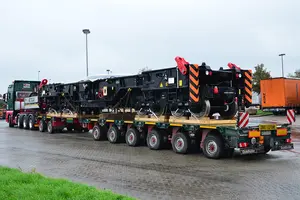

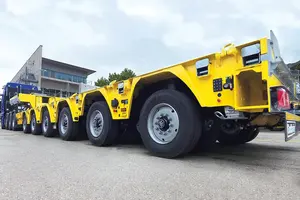

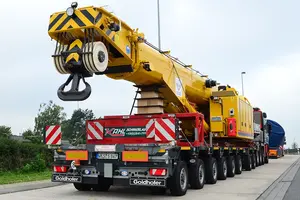

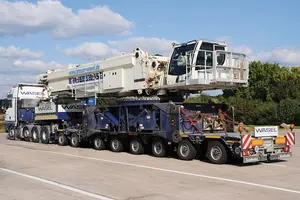

»ARCUS« P | »ARCUS« PK in action
