»BLADE S«

HIGHEST FLEXIBILITY

With »BLADES«, the load becomes the connecting element within the configuration. The gooseneck is coupled to the tractor by a rocking buck with hydraulic locking. After that, the root frame of the rotor blade can be mounted on the hydraulically adjustable free-turning device. The dolly picks up the load via a Goldhofer turntable. This ensures maximum flexibility during transport, as the tractor and dolly can also master narrow passages. After successful transport, the dolly is coupled to the free-turning device with an adapter and can travel as a semi-trailer to the next operation.

SEND REQUEST NOW!

Your benefits
  • High ground clearance under the rotor blade
  • Easy negotiation of obstacles on the route
  • Low overall weight and less fuel consumption
  • Reduced overall transport costs
  • Transports with rotor blades over 70 m possible
  • Flexible, future-proof transport solution

Technical features

+   Dead weight   4.6 t
+   Capacity   25 t
+   Swing clearance radius   2,800mm / 3,400mm
+   Hydraulic stroke (Depending on swing clearance radius)   2,260mm / 2,710mm

Accessories

+



Specifically designed root frame adaptor



+



Turntable compatible with all common tip racks


+   Vestas interface, special turntable as interface for Vestas-tip clamp on the self-tracking rear boogy according to Vestas regulations

+



»SmartControl« (Radio remote control for easy operation of all hydraulic functions)



Downloads

Video

Low overall
Weight
High
Agility
Multiple
combinations possible

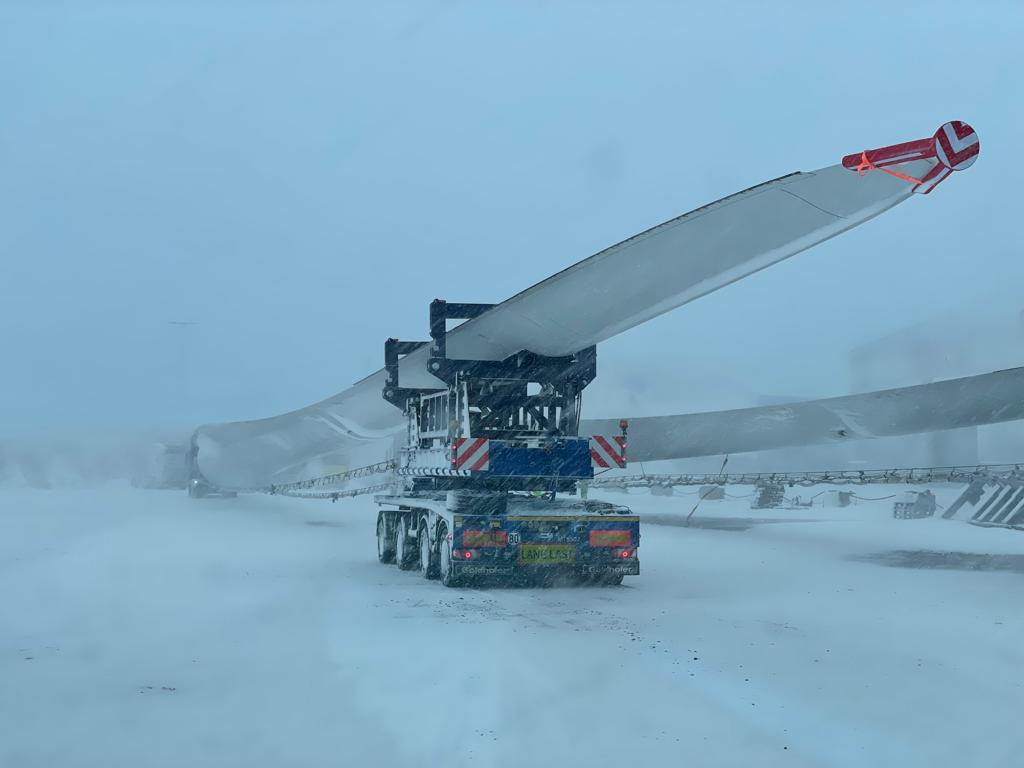

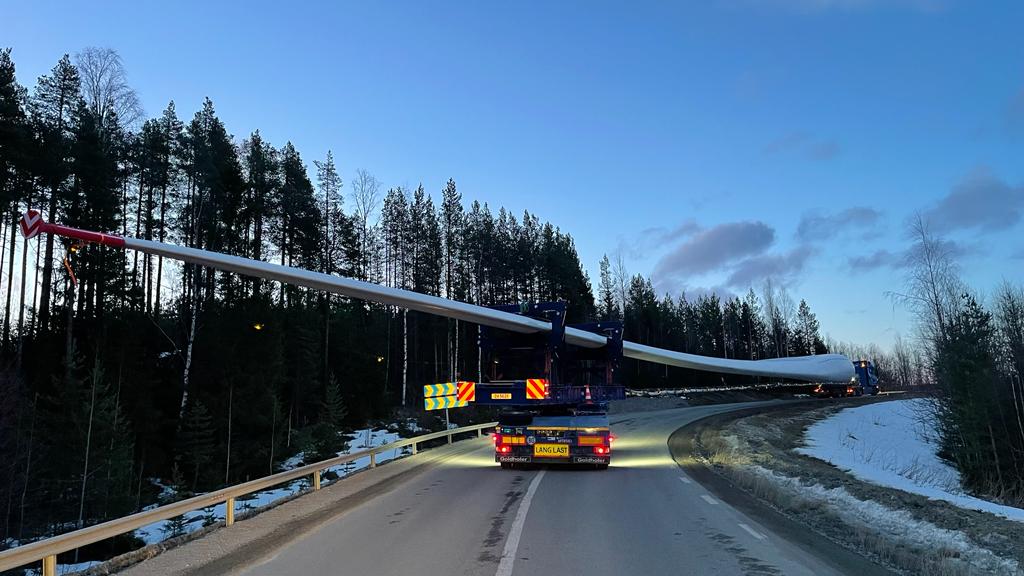

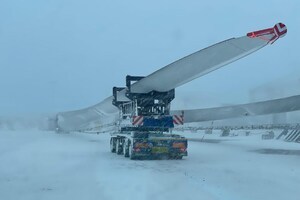

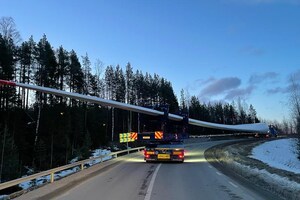

»BLADE S« in Action
